Brake Caliper - Vehicles With: 6-Piston Brake Caliper

Base Part Number: 2B302

Removal

NOTICE: Make sure that all openings are sealed.

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake pads. Refer to: Brake Pads - Vehicles With: 6-Piston Brake Caliper (206-03 Front Disc Brake, Removal and Installation).

2. Remove the brake caliper flow bolt and disconnect the brake hose. Discard the washers. Torque : 30 lb.ft (40 Nm)

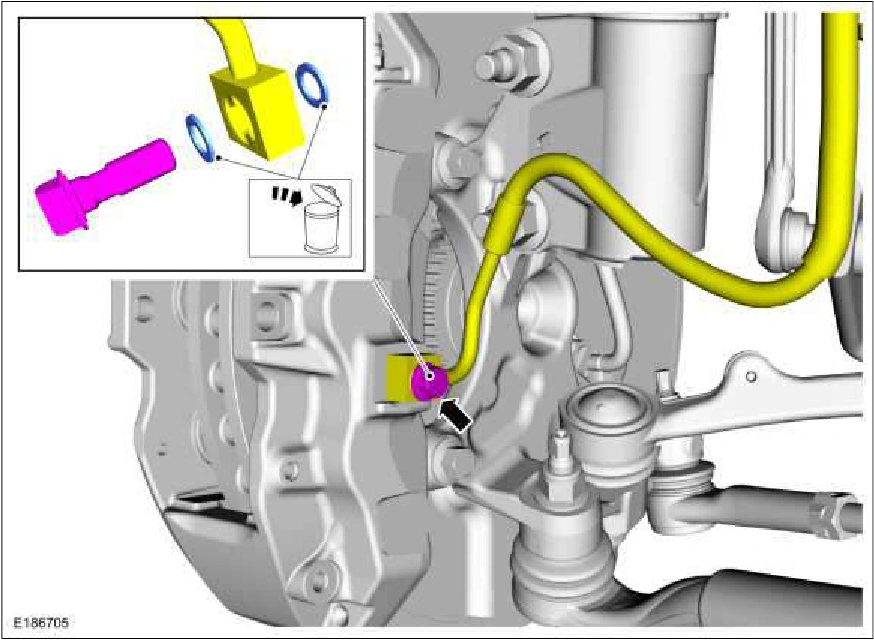

Brake Caliper - Vehicles With: 6-Piston Brake Caliper — original illustration 1, reference 2806Original colors & callouts · Select to enlarge

3. Remove the 2 bolts and the brake caliper. Discard the bolts. Torque : 85 lb.ft (115 Nm)
