206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Brake Caliper Anchor Plate

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake pads. Refer to: Brake Pads - Vehicles With: 2-Piston Brake Caliper (206-03 Front Disc Brake, Removal and Installation).

2. Remove the 2 bolts and the anchor plate. Discard the bolts. Torque : 85 lb.ft (115 Nm)

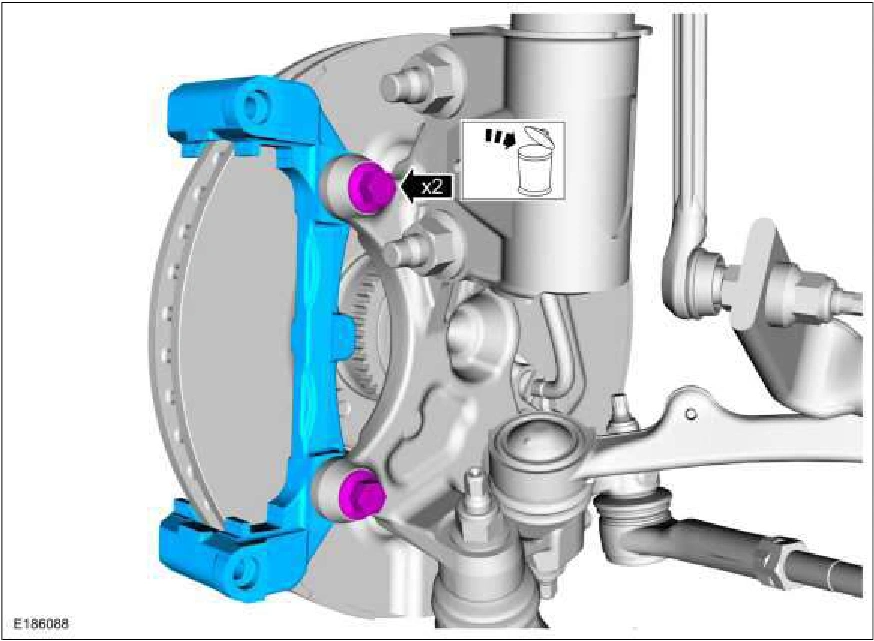

Brake Caliper Anchor Plate — original illustration 1, reference 2808Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
