Brake Disc — 2016 workshop reference 2810

Torque : 85 lb.ft (115 Nm)

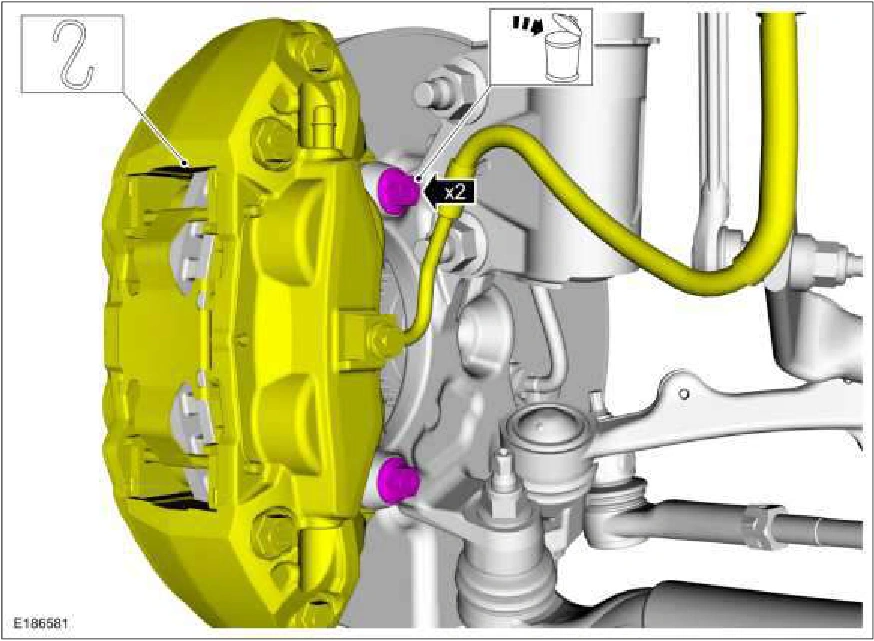

Brake Disc — original illustration 1, reference 2810Original colors & callouts · Select to enlarge

6-piston brake caliper

4. Remove the 2 bolts and position the brake caliper and brake pads aside. Discard the bolts. Torque : 85 lb.ft (115 Nm)

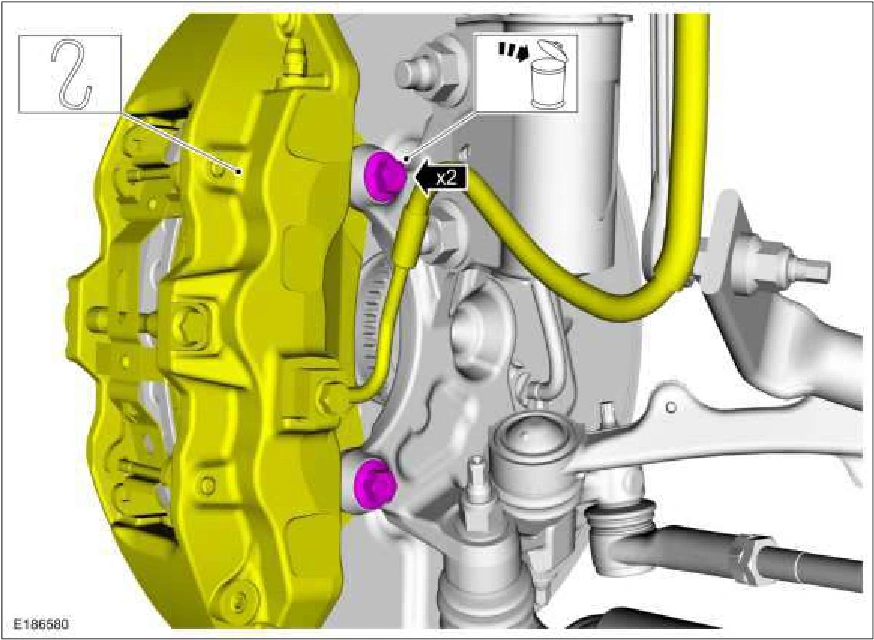

Brake Disc — original illustration 2, reference 2810Original colors & callouts · Select to enlarge

All brake calipers

Source reference 2810
