Brake Disc Shield — 2016 workshop reference 2813

Brake Disc Shield — original illustration 1, reference 2813Original colors & callouts · Select to enlarge

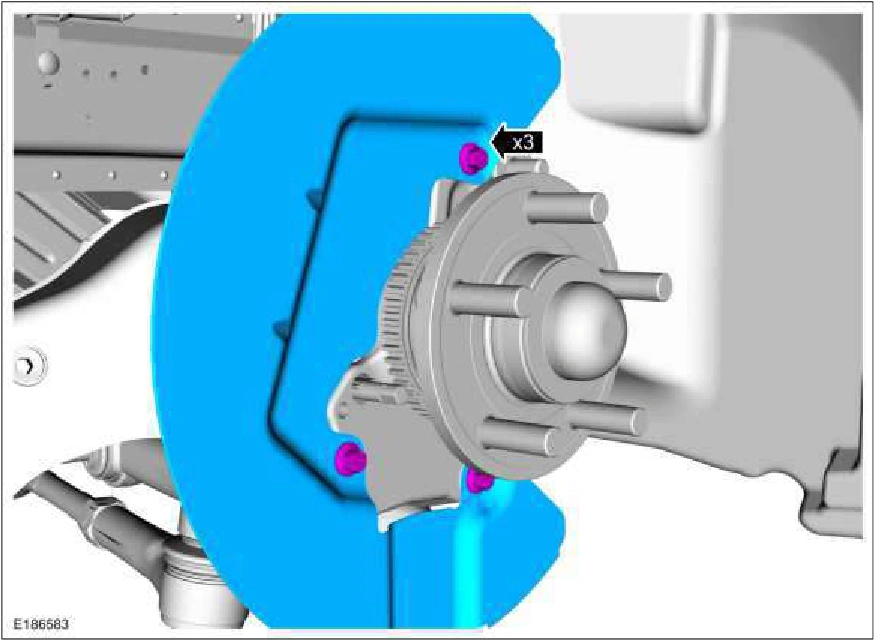

6-piston brake caliper-automatic transmission and convertable

4. Remove the 3 bolts and the brake disc shield. Torque : 177 lb.in (20 Nm)

Brake Disc Shield — original illustration 2, reference 2813Original colors & callouts · Select to enlarge

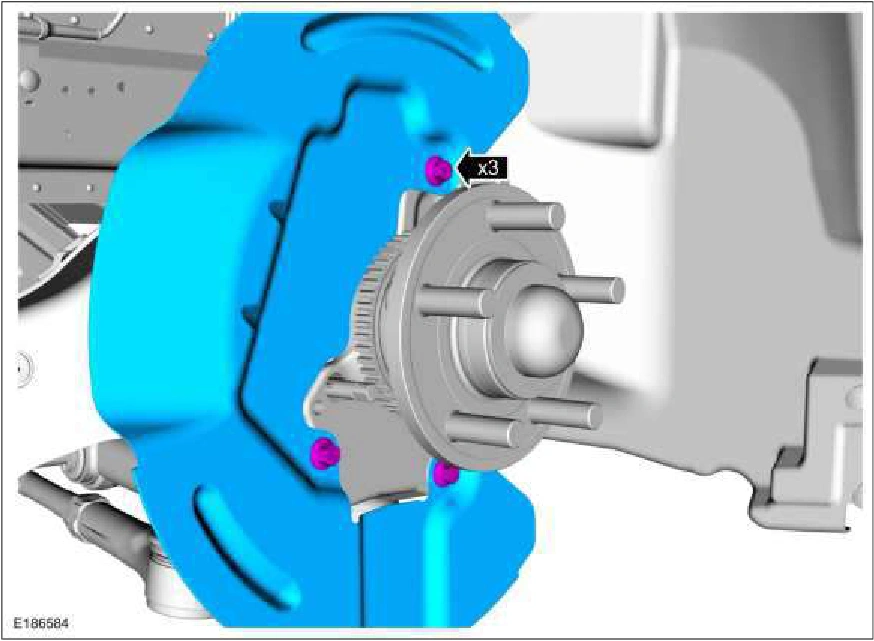

6-piston brake caliper-manual transmission

5. Remove the 2 bolts and the brake disc shield.
