2016 workshop · Brake System

Brake Disc

206-03 Front Disc Brake

2016 MustangReference 2,811 / 6,619HTML edition
← Chapter contentsProcedure contents

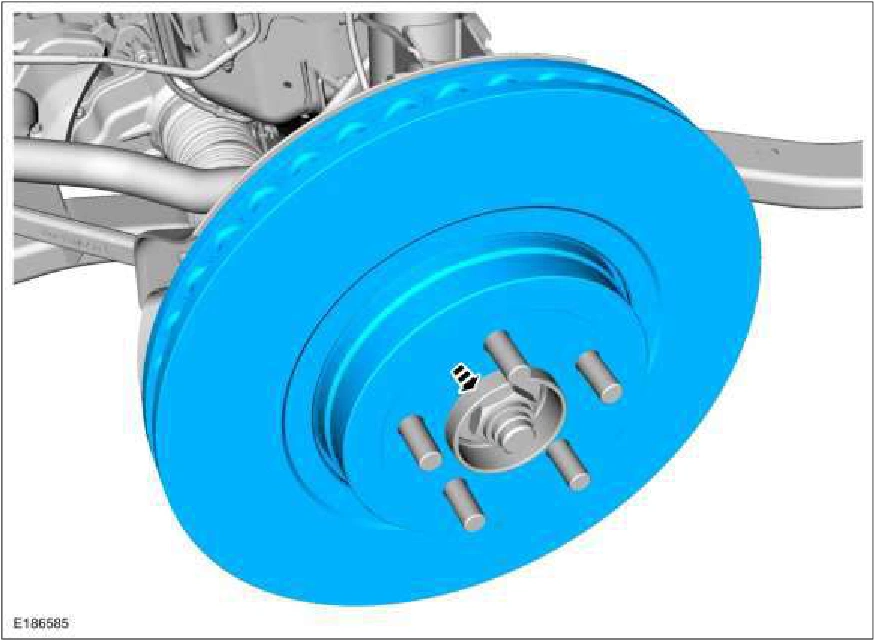

5. Remove the brake disc.

Brake Disc — original illustration 1, reference 2811Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Clean the brake disc mating surfaces using a wire brush and the specified material. Material : Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

3. Apply the brake pedal several times to verify correct brake system operation.
