206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 07/27/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

All brake calipers

1. Remove the brake disc. Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation).

2-piston brake caliper

2. Remove the 3 bolts and the brake disc shield. Torque : 177 lb.in (20 Nm)

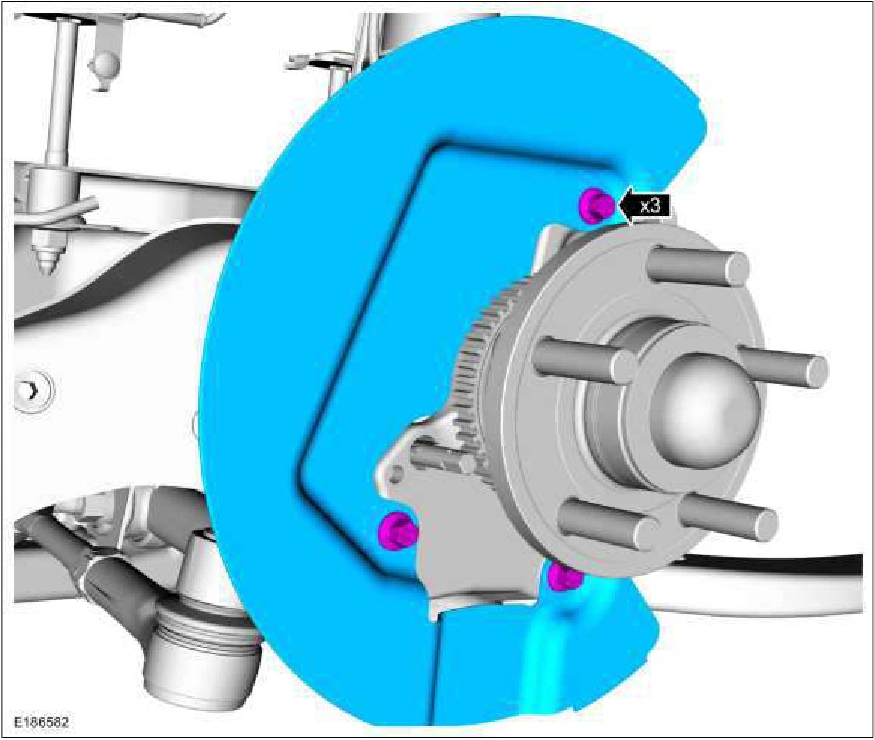

Brake Disc Shield — original illustration 1, reference 2812Original colors & callouts · Select to enlarge

4-piston brake caliper

3. Remove the 3 bolts and the brake disc shield. Torque : 177 lb.in (20 Nm)

Source reference 2812
