Brake Pads - Vehicles With: 2-Piston Brake Caliper — 2016 workshop reference 2816

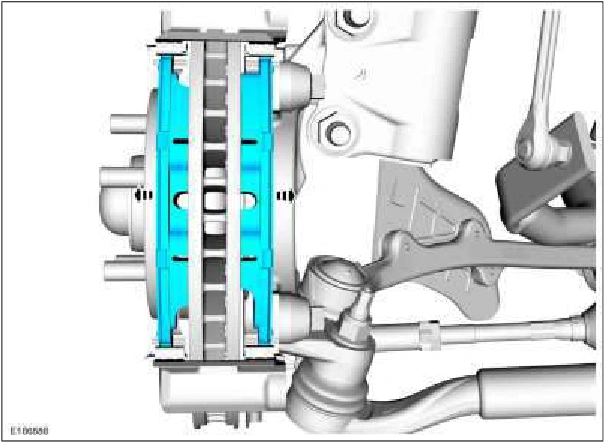

Brake Pads - Vehicles With: 2-Piston Brake Caliper — original illustration 1, reference 2816Original colors & callouts · Select to enlarge

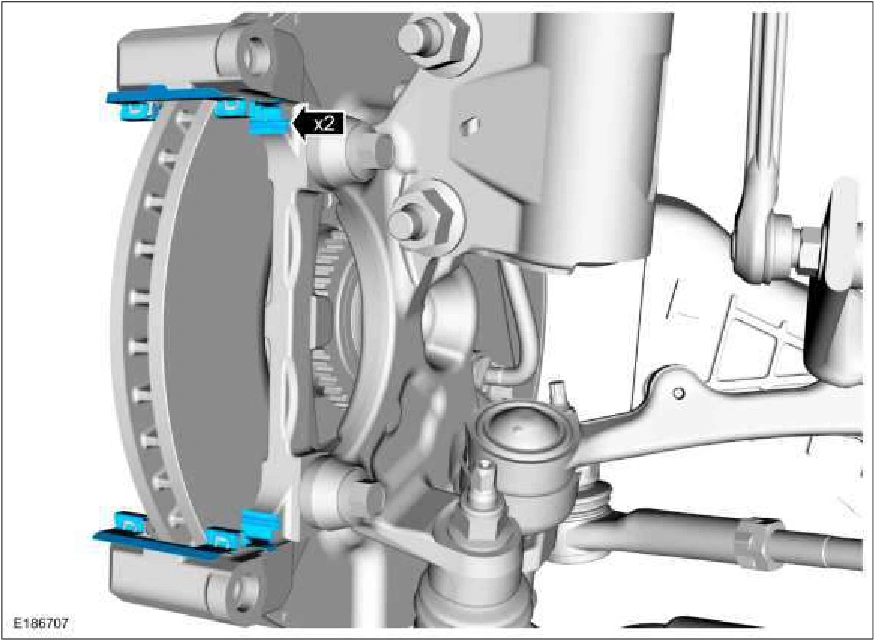

4. NOTE: There are two different brake pad clips. The brake pad clip with the tab must be installed at the top position on the anchor plate.

Remove the top and bottom brake pad clips.

Brake Pads - Vehicles With: 2-Piston Brake Caliper — original illustration 2, reference 2816Original colors & callouts · Select to enlarge

Installation

NOTE: If installing new brake pads, make sure to install all new hardware and lubricant supplied with the brake pad kit. Refer to the brake pad instruction sheet when applying lubricant.

1. To install, reverse the removal procedure.

2. If installing new brake pads. Use a C-clamp and a worn brake pad to compress the brake caliper pistons into the brake caliper bore.

Source reference 2816
