Brake Pads - Vehicles With: 4-Piston Brake Caliper

Base Part Number: 2001

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

Step 2

1. Remove brake pad spring.

2. Remove the brake pad pin clip.

3. Remove the 2 brake pad pins.

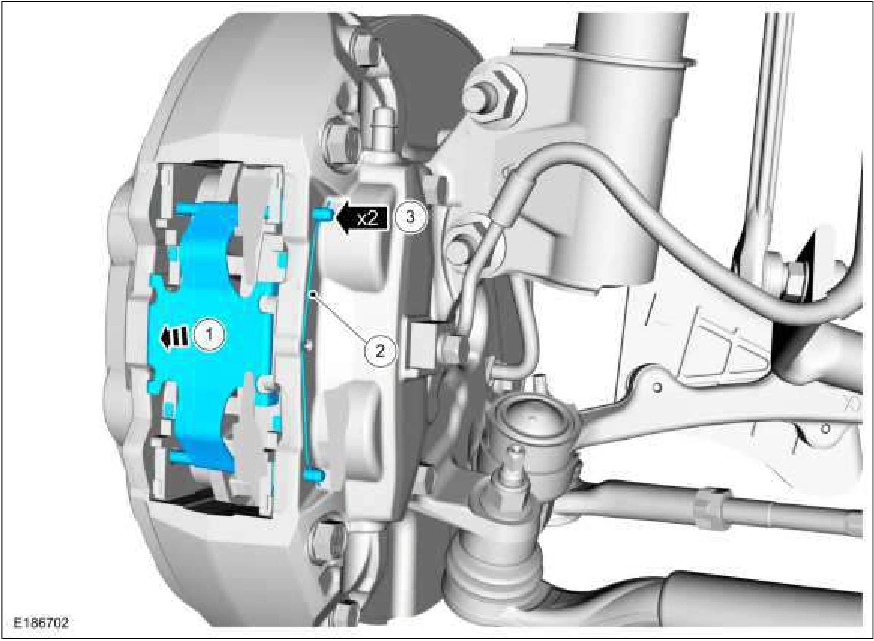

Brake Pads - Vehicles With: 4-Piston Brake Caliper — original illustration 1, reference 2818Original colors & callouts · Select to enlarge

3. Compress the brake caliper pistons using a brake pad spreader tool and remove the brake pads.
