206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Brake Pads - Vehicles With: 6-Piston Brake Caliper

Base Part Number: 2001

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

Step 2

1. Remove the 2 brake pad pins.

2. Remove the brake pad spring retainer clip.

3. Remove the brake caliper pin bolt. Torque : 22 lb.ft (30 Nm)

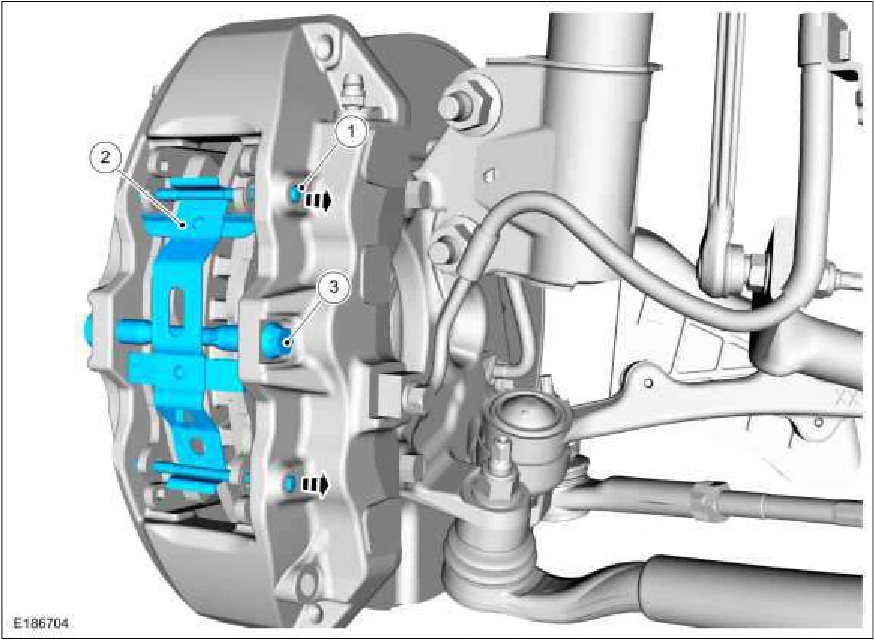

Brake Pads - Vehicles With: 6-Piston Brake Caliper — original illustration 1, reference 2820Original colors & callouts · Select to enlarge

3. Compress the brake caliper pistons using a brake pad spreader tool.

Source reference 2820
