Brake Pads - Vehicles With: 4-Piston Brake Caliper — 2016 workshop reference 2819

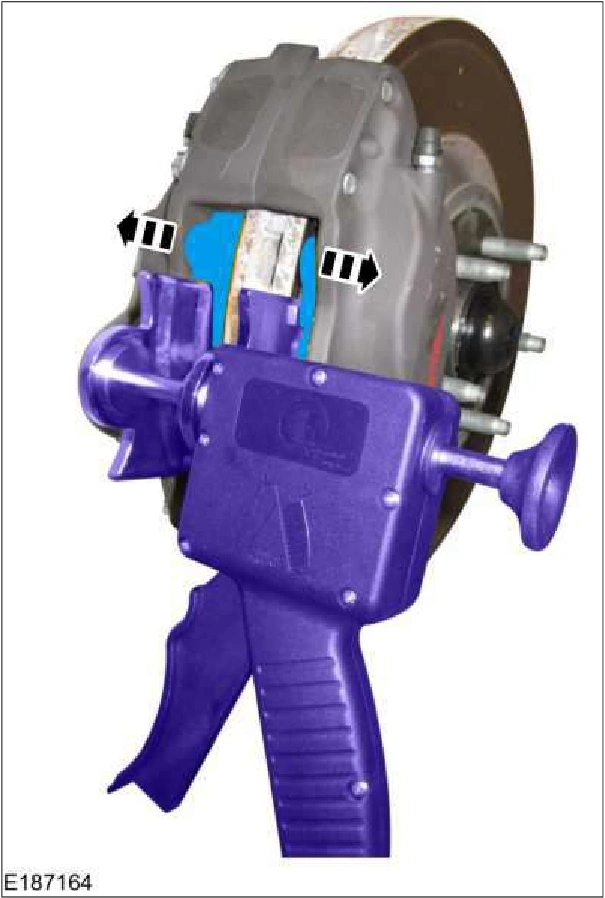

Brake Pads - Vehicles With: 4-Piston Brake Caliper — original illustration 1, reference 2819Original colors & callouts · Select to enlarge

Installation

NOTE: If installing new brake pads, make sure to install all new hardware and lubricant supplied with the brake pad kit. Refer to the brake pad instruction sheet when applying lubricant.

1. To install, reverse the removal procedure.

2. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Refer to: Specifications (206-00 Brake System - General Information, Specifications).
