Front Brake Flexible Hose

206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Removal

NOTE: Make sure all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

2-piston brake caliper

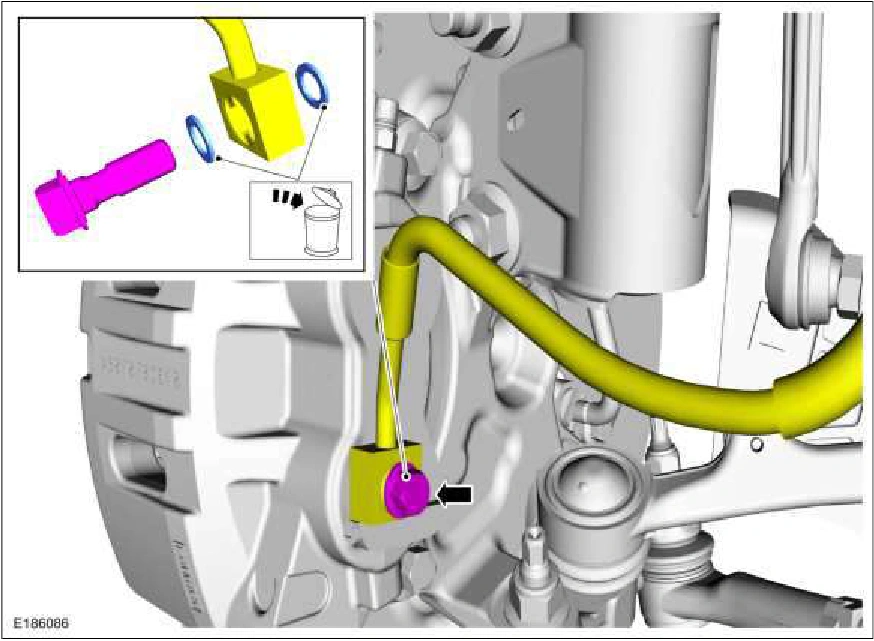

1. Remove the brake caliper flow bolt and detach the front brake flexible hose. Torque : 30 lb.ft (40 Nm)

Front Brake Flexible Hose — original illustration 1, reference 2823Original colors & callouts · Select to enlarge

4-piston brake caliper

2. Remove the brake caliper flow bolt and detach the front brake flexible hose. Torque : 30 lb.ft (40 Nm)

Source reference 2823
