Front Brake Flexible Hose — 2016 workshop reference 2824

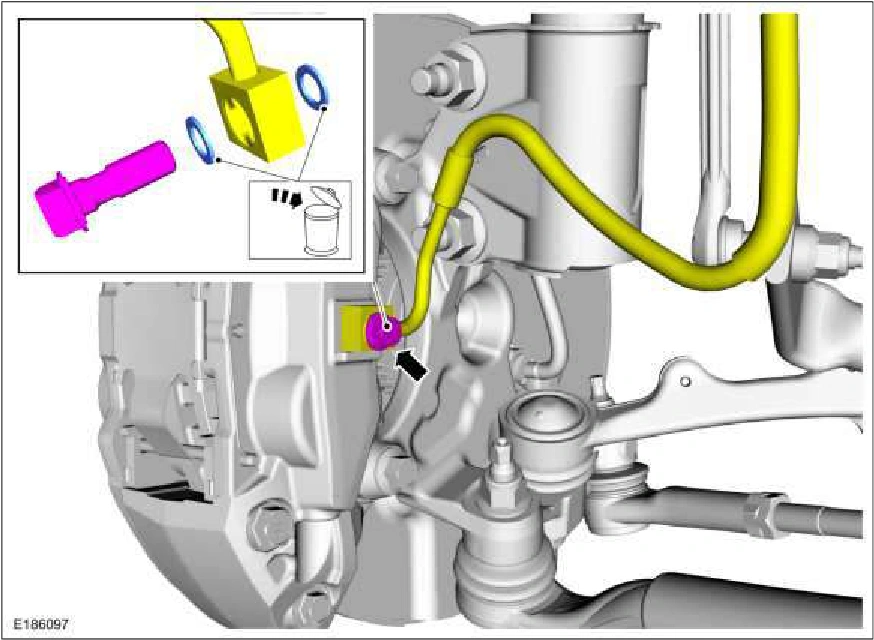

Front Brake Flexible Hose — original illustration 1, reference 2824Original colors & callouts · Select to enlarge

6-piston brake caliper

3. Remove the brake caliper flow bolt and detach the front brake flexible hose. Torque : 30 lb.ft (40 Nm)

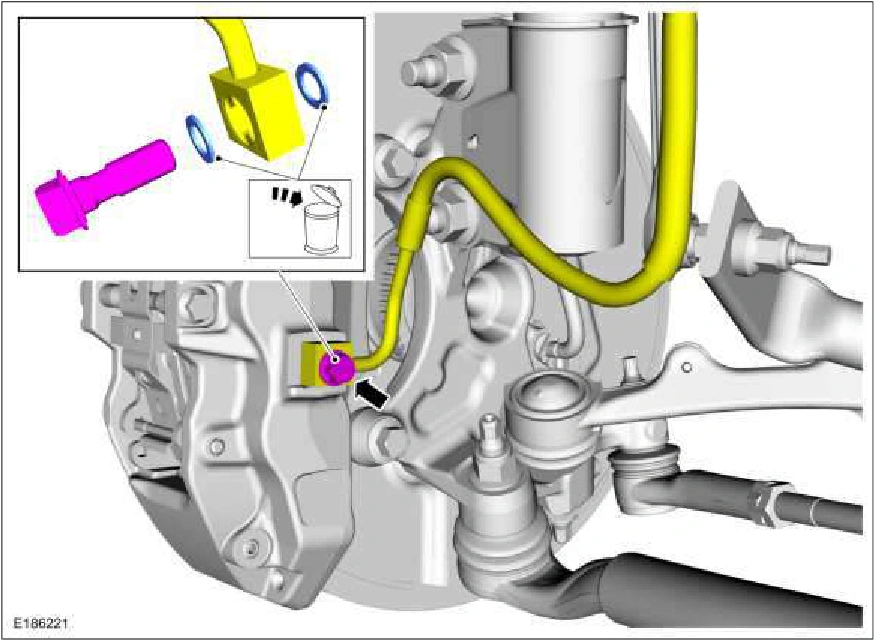

Front Brake Flexible Hose — original illustration 2, reference 2824Original colors & callouts · Select to enlarge

All brake calipers

Step 4

1. Disconnect the brake tube fitting.
