206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 11/2/2015

Brake Caliper - Vehicles With: SVT Performance Package

Base Part Number: 2B302

Removal

NOTICE: Make sure that all openings are sealed.

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Remove the brake caliper flow bolt and disconnect the brake hose. Discard the washers.

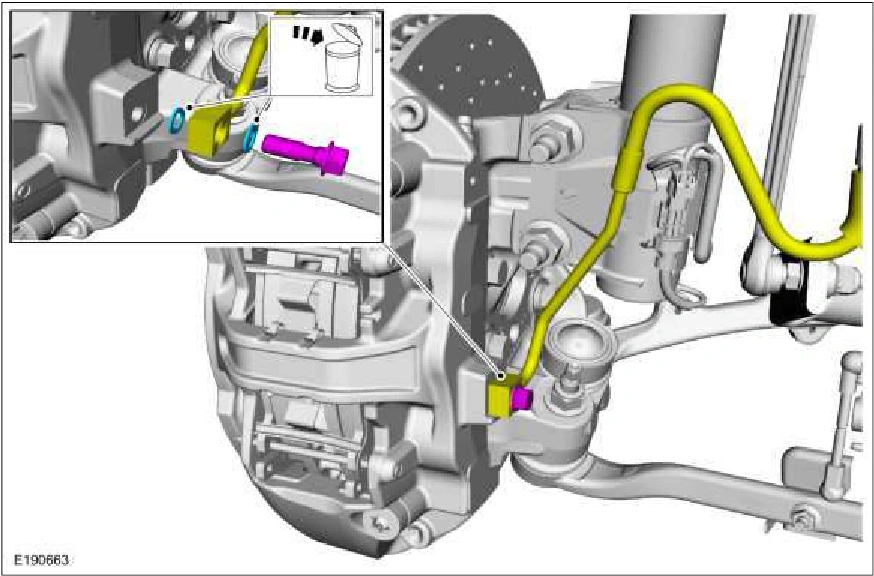

1. Remove the brake caliper flow bolt and disconnect the brake hose. Discard the washers. Torque : 35 lb.ft (48 Nm)

Brake Caliper - Vehicles With: SVT Performance Package — original illustration 1, reference 2826Original colors & callouts · Select to enlarge

2. Remove the bolts and the brake caliper. Discard the bolts. Torque : 136 lb.ft (185 Nm)
