Brake Disc - Vehicles With: SVT Performance Package — 2016 workshop reference 2829

206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 11/2/2015

Brake Disc - Vehicles With: SVT Performance Package

Base Part Number: 1125

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

2. NOTICE: Do not allow the brake caliper to hang from the brake hose or damage to the brake hose

may occur.

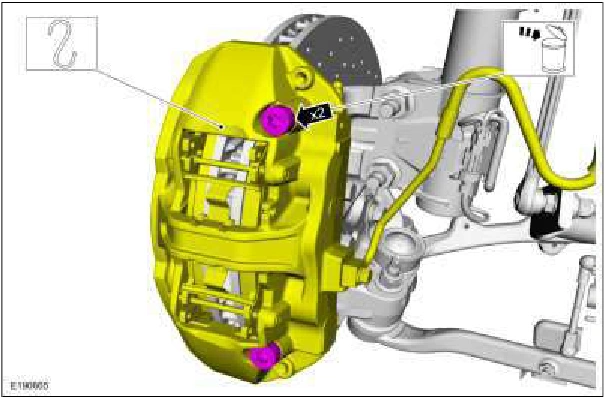

Remove the bolts and position the brake caliper and brake pads aside. Discard the bolts. Torque : 136 lb.ft (185 Nm)

Brake Disc - Vehicles With: SVT Performance Package — original illustration 1, reference 2829Original colors & callouts · Select to enlarge

3. NOTICE: Use care when handling the brake disc.

Remove the brake disc.

Source reference 2829
