206-03 Front Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 07/27/2015

Brake Disc Shield - Vehicles With: SVT Performance Package

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake disc. Refer to: Brake Disc - Vehicles With: SVT Performance Package (206-03 Front Disc Brake, Removal and Installation).

2. Remove the bolts and the brake disc shield. Torque : 106 lb.in (12 Nm)

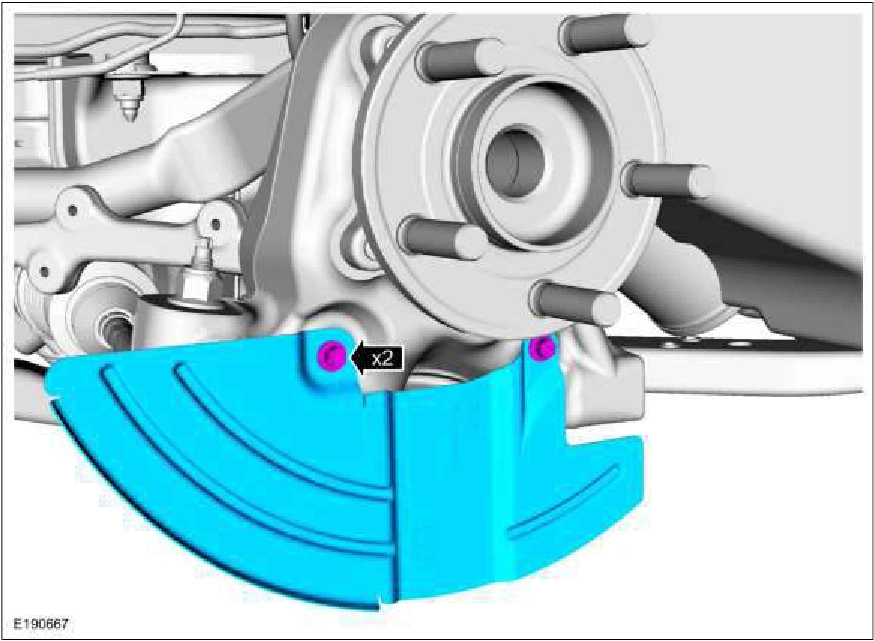

Brake Disc Shield - Vehicles With: SVT Performance Package — original illustration 1, reference 2831Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
