Brake Pads - Vehicles With: SVT Performance Package

206-03 Front Disc Brake

2016 MustangReference 2,833 / 6,619HTML edition

← Chapter contents Procedure contents

Brake Pads - Vehicles With: SVT Performance Package — original illustration 1, reference 2833Original colors & callouts · Select to enlarge

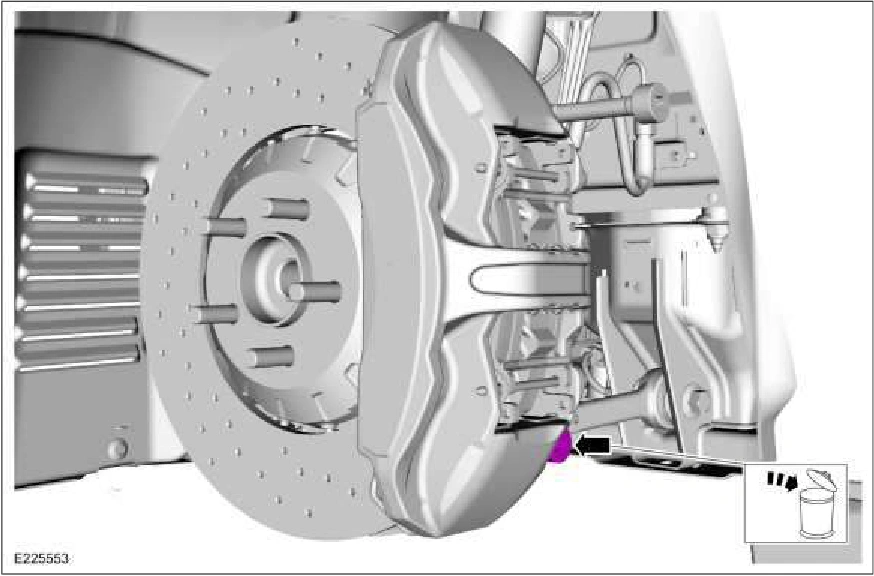

4. Remove and discard the lower brake caliper bolt. Torque : 136 lb.ft (185 Nm)

Brake Pads - Vehicles With: SVT Performance Package — original illustration 2, reference 2833Original colors & callouts · Select to enlarge

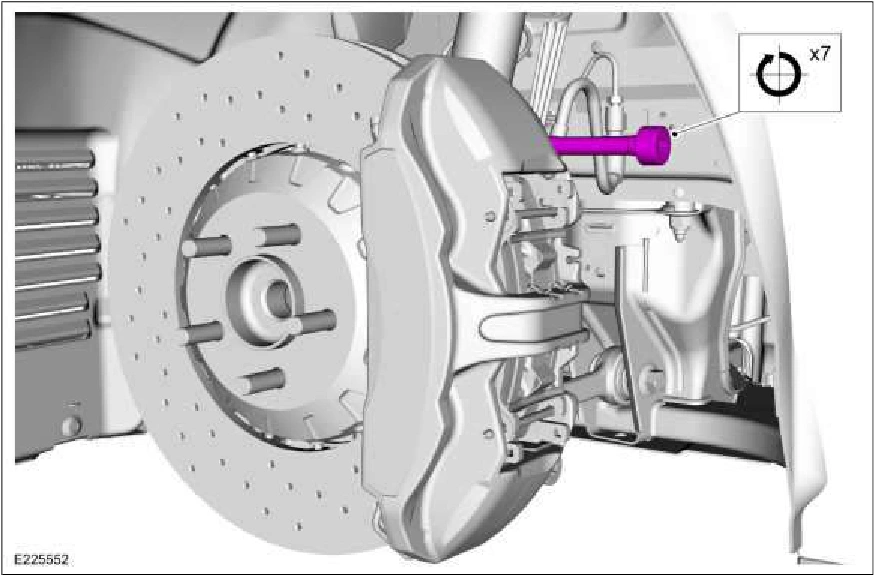

5. Loosely install a larger bolt (M14 x 180) turning 7 full turns.

Source reference 2833
