Brake Pads - Vehicles With: SVT Performance Package — 2016 workshop reference 2834

Brake Pads - Vehicles With: SVT Performance Package — original illustration 1, reference 2834Original colors & callouts · Select to enlarge

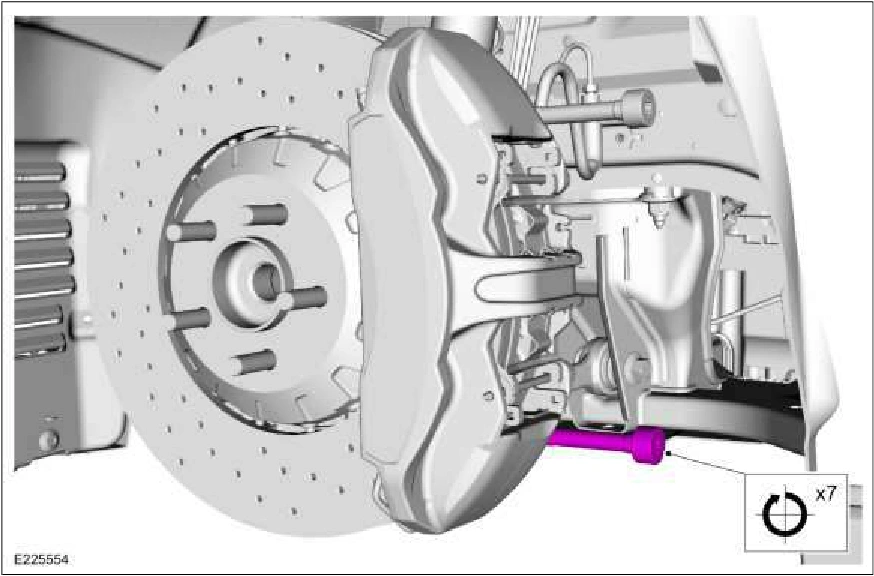

Step 6

1. NOTICE: Make sure the wheels are in the straight-ahead position before moving the brake

caliper or damage to the brake hose may occur.

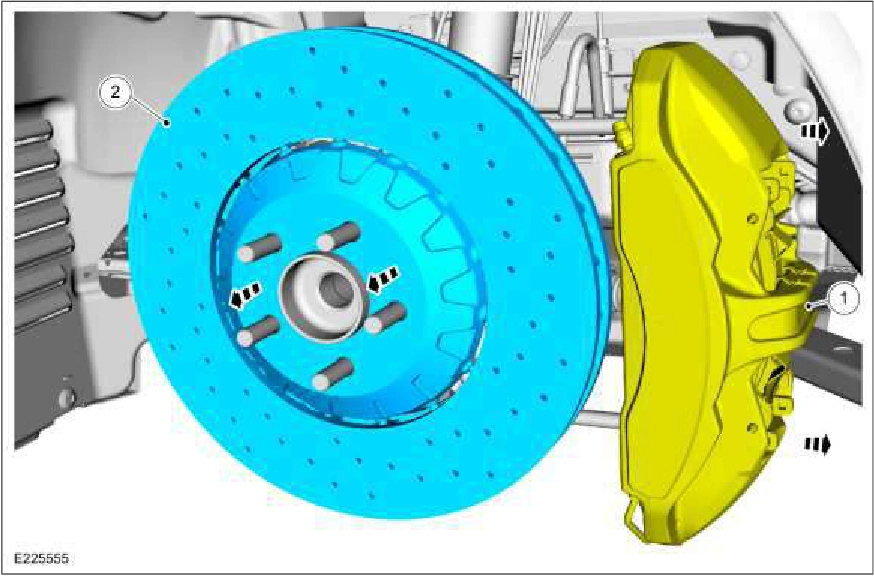

Slide the brake caliper back on the longer bolts.

2. NOTICE: Use care when handling the brake disc.

Remove the brake disc.

Brake Pads - Vehicles With: SVT Performance Package — original illustration 2, reference 2834Original colors & callouts · Select to enlarge

7. Compress the brake caliper pistons using the brake pad spreader tool.

Source reference 2834
