Brake Caliper - Vehicles With: SVT Performance Package — 2016 workshop reference 2828

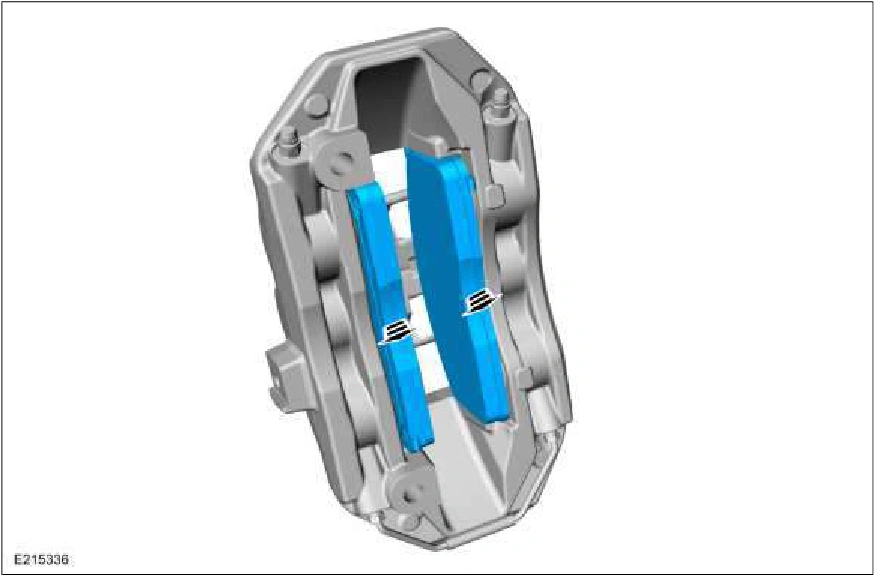

Brake Caliper - Vehicles With: SVT Performance Package — original illustration 1, reference 2828Original colors & callouts · Select to enlarge

5. Remove the brake pad spring retainer clip.

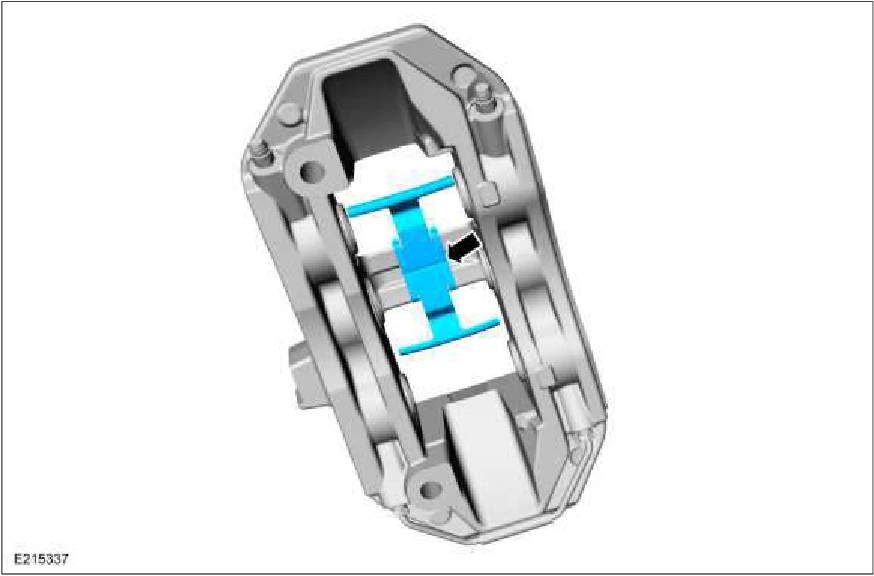

Brake Caliper - Vehicles With: SVT Performance Package — original illustration 2, reference 2828Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Bleed the brake system. Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).

Source reference 2828
