Front Brake Flexible Hose — 2016 workshop reference 2825

Torque : 155 lb.in (17.5 Nm)

2. Remove the bolt and the front brake flexible hose. Torque : 18 lb.ft (25 Nm)

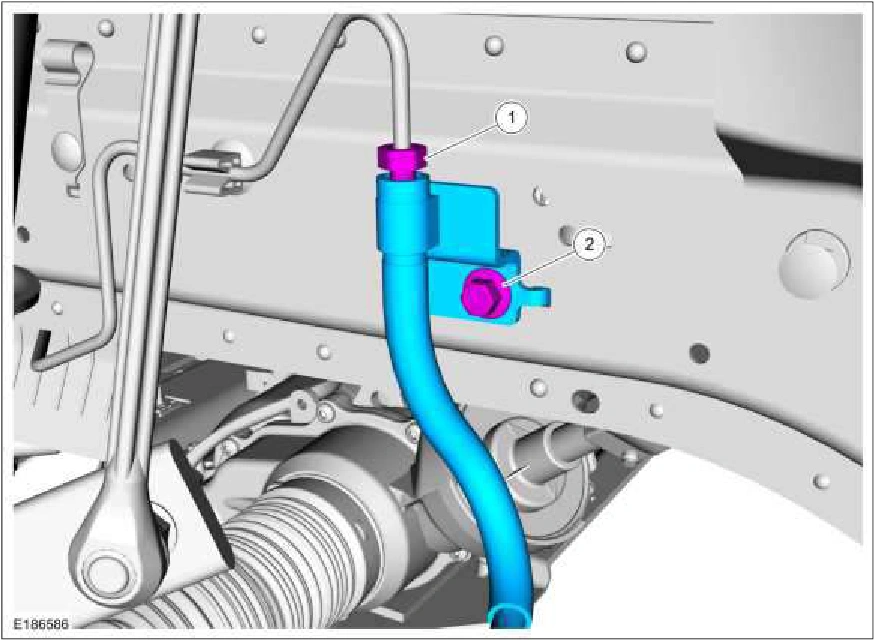

Front Brake Flexible Hose — original illustration 1, reference 2825Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Bleed the brake system. Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
