Brake Pads - Vehicles With: SVT Performance Package — 2016 workshop reference 2860

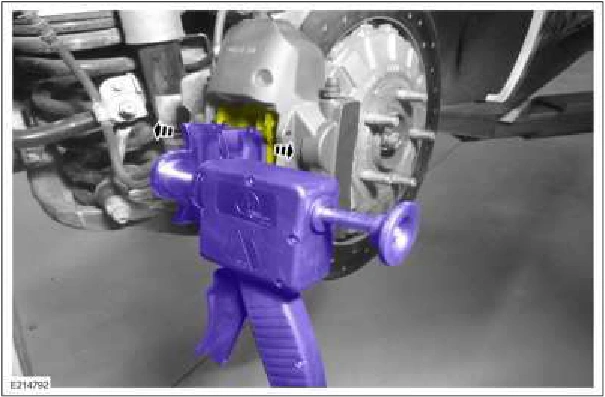

Brake Pads - Vehicles With: SVT Performance Package — original illustration 1, reference 2860Original colors & callouts · Select to enlarge

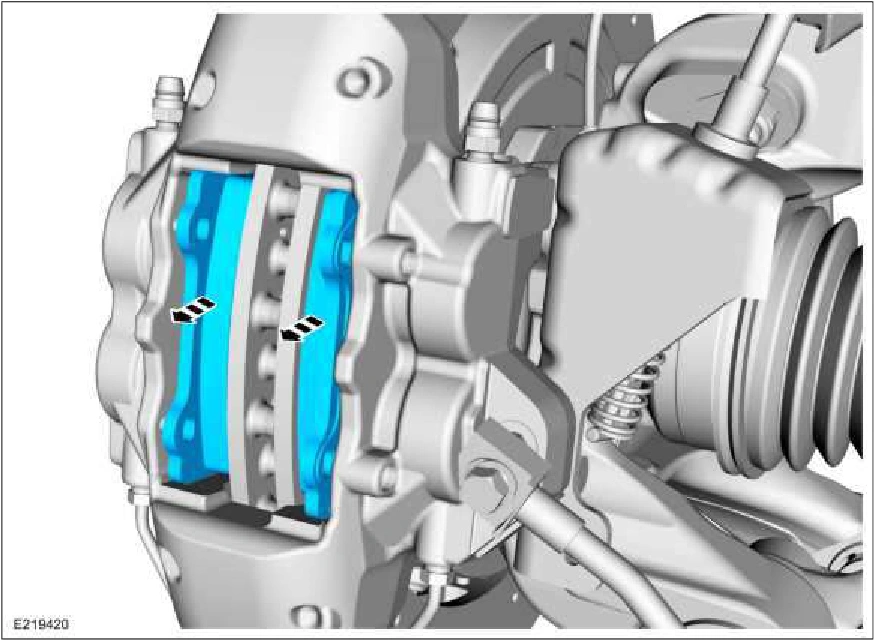

4. Remove the brake pads.

Brake Pads - Vehicles With: SVT Performance Package — original illustration 2, reference 2860Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Refer to: Specifications (206-00 Brake System - General Information) .

Source reference 2860

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
