206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 08/11/2015

Brake Pads - Vehicles With: SVT Performance Package

Base Part Number: 2001

Special Tool(s) / General Equipment

Brake Caliper Piston Retractor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

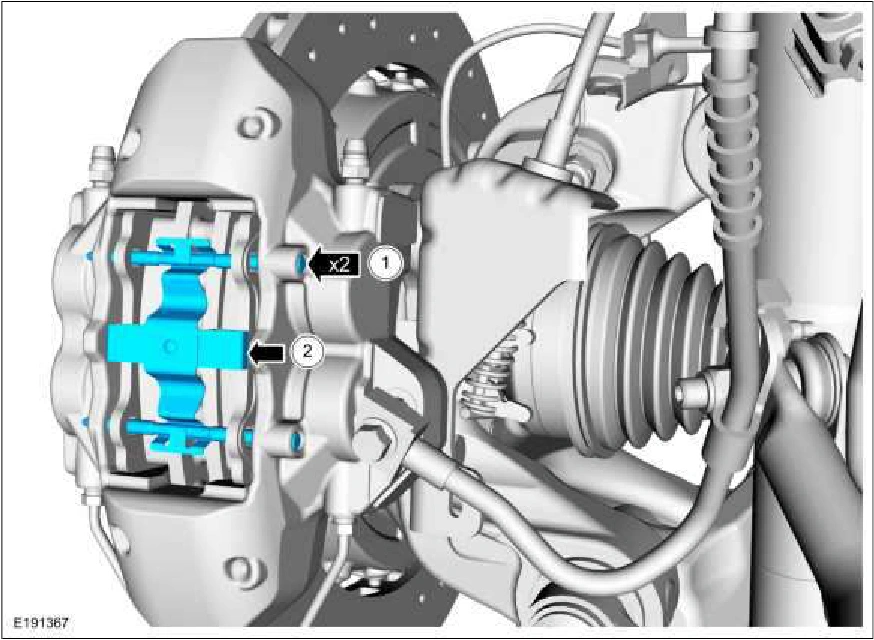

Step 2

1. Remove the brake pad pins.

2. Remove brake pad spring.

Brake Pads - Vehicles With: SVT Performance Package — original illustration 1, reference 2859Original colors & callouts · Select to enlarge

3. Compress the brake caliper pistons using a brake pad spreader tool and remove the brake pads. Use the General Equipment: Brake Caliper Piston Retractor
