Brake Disc - Vehicles With: SVT Performance Package

206-04 Rear Disc Brake

2016 MustangReference 2,856 / 6,619HTML edition

← Chapter contents Procedure contents

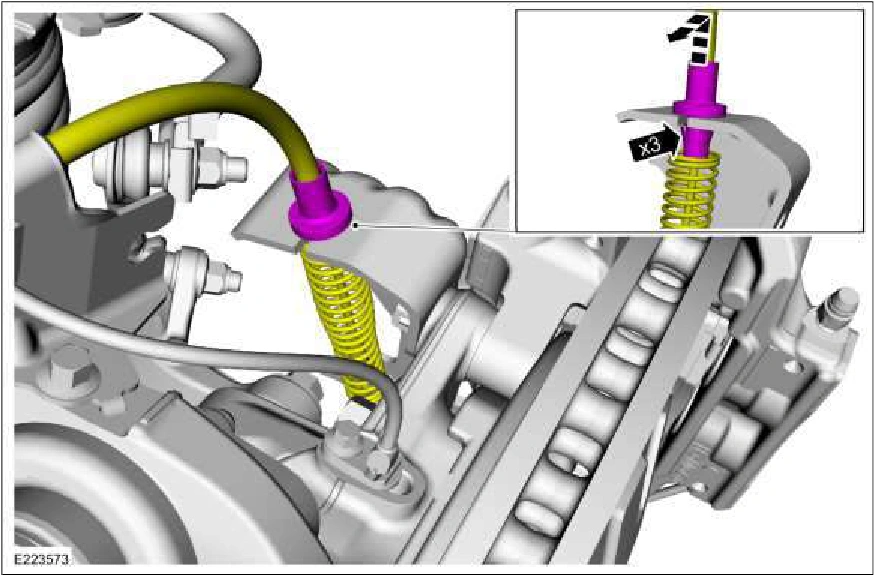

Brake Disc - Vehicles With: SVT Performance Package — original illustration 1, reference 2856Original colors & callouts · Select to enlarge

Step 4

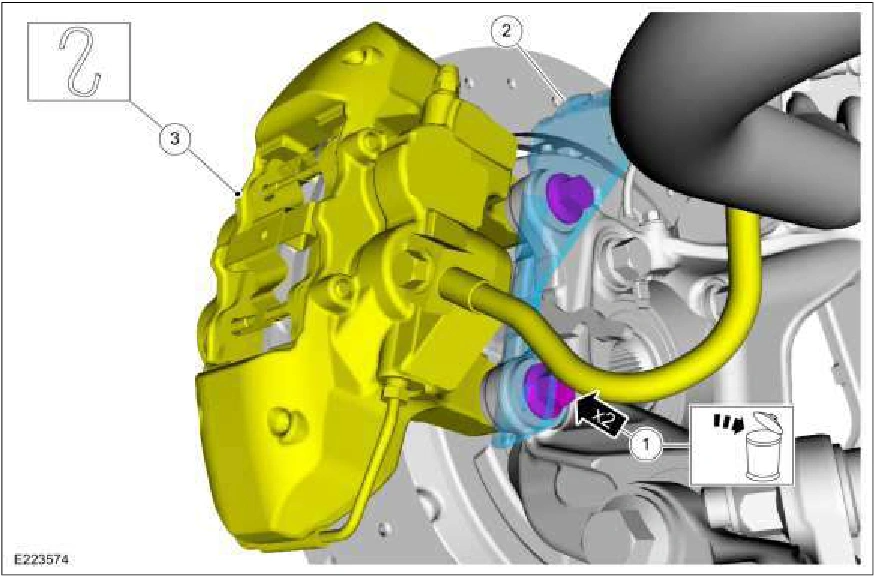

1. Remove and discard the bolts. Torque : 81 lb.ft (110 Nm)

2. Remove the bracket.

3. Position the brake caliper aside.

Brake Disc - Vehicles With: SVT Performance Package — original illustration 2, reference 2856Original colors & callouts · Select to enlarge

5. Remove the brake disc.

Source reference 2856
