Brake Caliper - Vehicles With: SVT Performance Package

206-04 Rear Disc Brake

2016 MustangReference 2,853 / 6,619HTML edition

← Chapter contents Procedure contents

Brake Caliper - Vehicles With: SVT Performance Package — original illustration 1, reference 2853Original colors & callouts · Select to enlarge

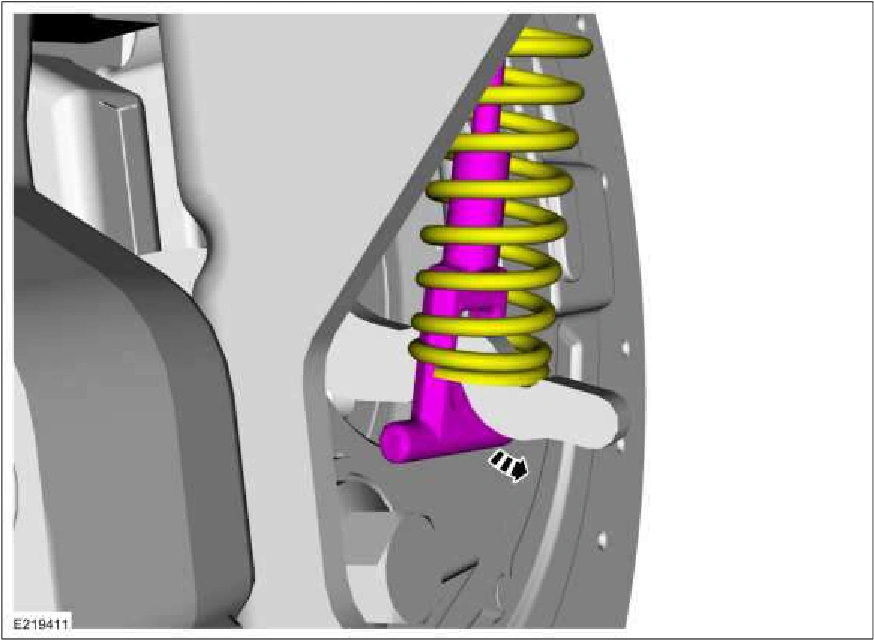

4. Press inward on the tabs and detach the parking brake cable from the bracket.

Brake Caliper - Vehicles With: SVT Performance Package — original illustration 2, reference 2853Original colors & callouts · Select to enlarge

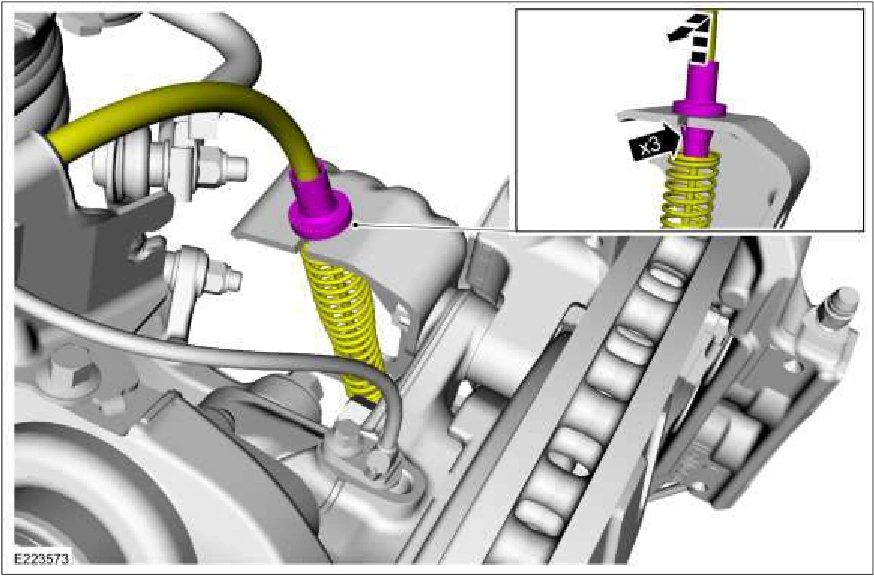

Step 5

1. Remove and discard the bolts. Torque : 85 lb.ft (115 Nm)

2. Remove the bracket.

3. Remove the brake caliper.

Source reference 2853
