Brake Caliper - Vehicles With: SVT Performance Package — 2016 workshop reference 2852

206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 08/11/2015

Brake Caliper - Vehicles With: SVT Performance Package

Base Part Number: 2B302

Removal

NOTICE: Make sure that all openings are sealed.

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake pads. Refer to: Brake Pads - Vehicles With: SVT Performance Package (206-04 Rear Disc Brake, Removal and Installation).

2. Remove the brake caliper flow bolt and disconnect the brake hose from the brake caliper. Discard the washers. Torque : 30 lb.ft (40 Nm)

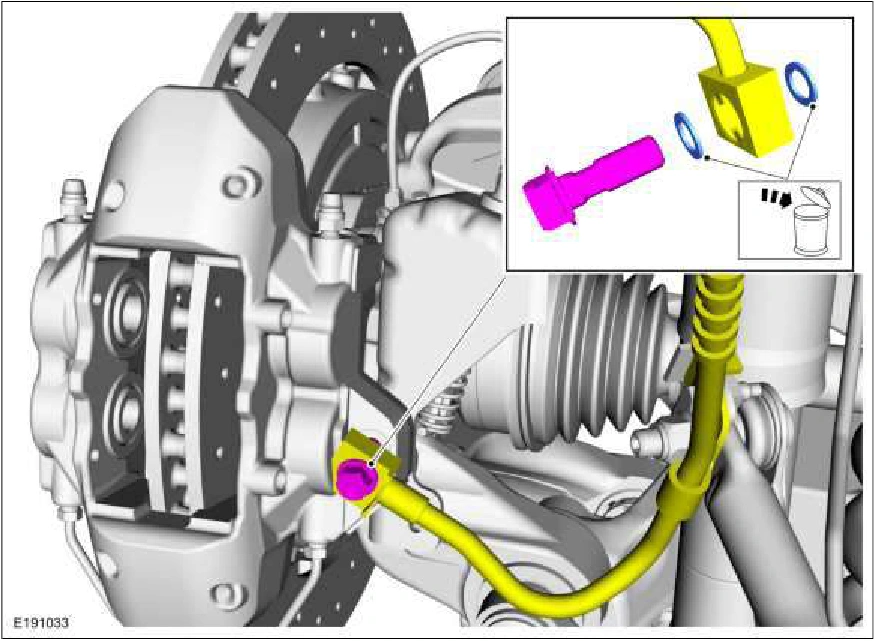

Brake Caliper - Vehicles With: SVT Performance Package — original illustration 1, reference 2852Original colors & callouts · Select to enlarge

3. Disconnect parking brake cable from parking brake shoe actuation lever.
