Brake Pads — 2016 workshop reference 2849

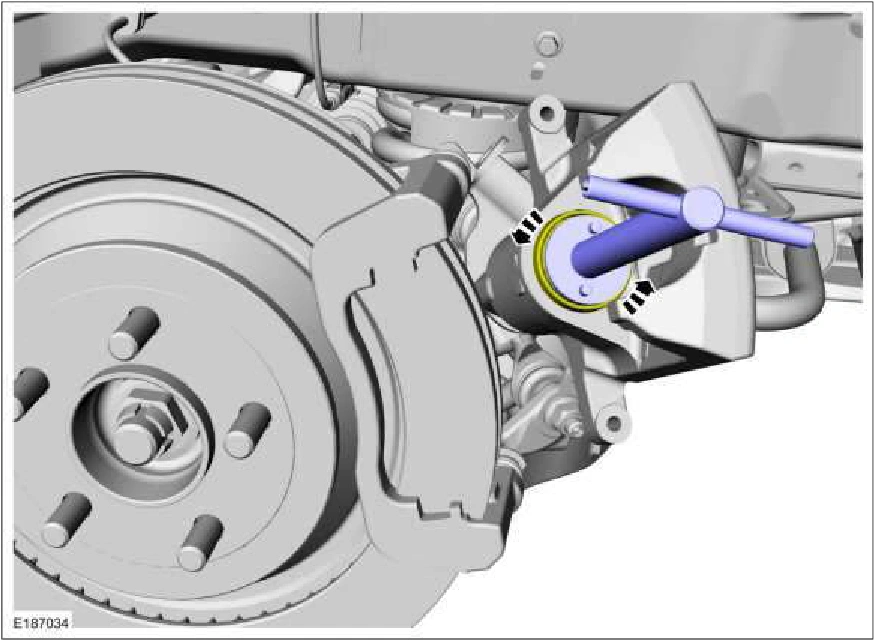

Retract the brake caliper pistons into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor

Brake Pads — original illustration 1, reference 2849Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Refer to: Specifications (206-00 Brake System - General Information, Specifications).
