Brake Pads

206-04 Rear Disc Brake

2016 MustangReference 2,848 / 6,619HTML edition
← Chapter contentsProcedure contents

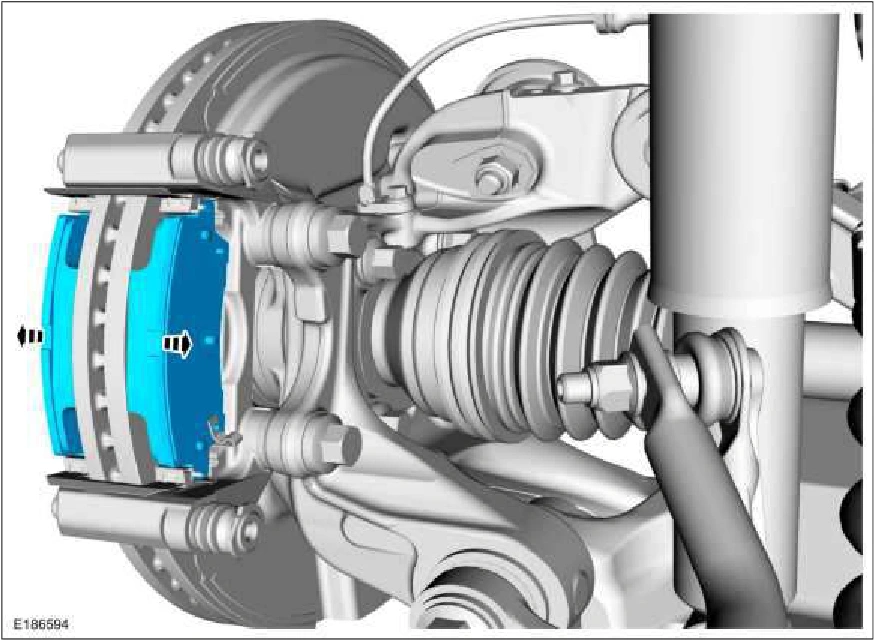

Brake Pads — original illustration 1, reference 2848Original colors & callouts · Select to enlarge

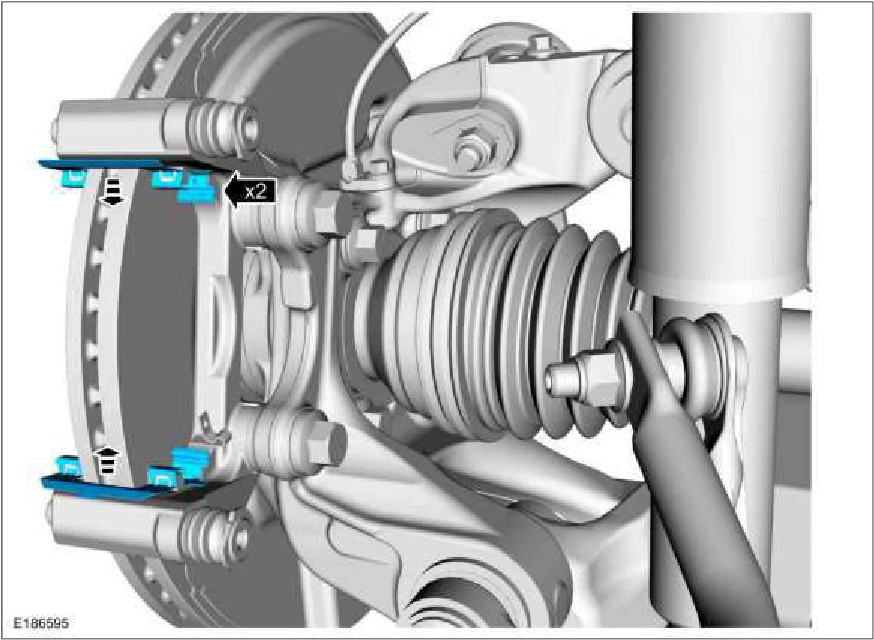

4. Remove the clips.

Brake Pads — original illustration 2, reference 2848Original colors & callouts · Select to enlarge

5. NOTE: Make sure the notch on the piston is aligned with the pin on the inboard brake pad before installing the brake caliper. A moderate to heavy force toward the caliper piston must be applied. If sufficient force is not applied, the internal park brake mechanism clutch cone will not engage and the piston will not compress.

If installing new brake pads.

Source reference 2848
