206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Brake Disc Shield

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake disc. Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

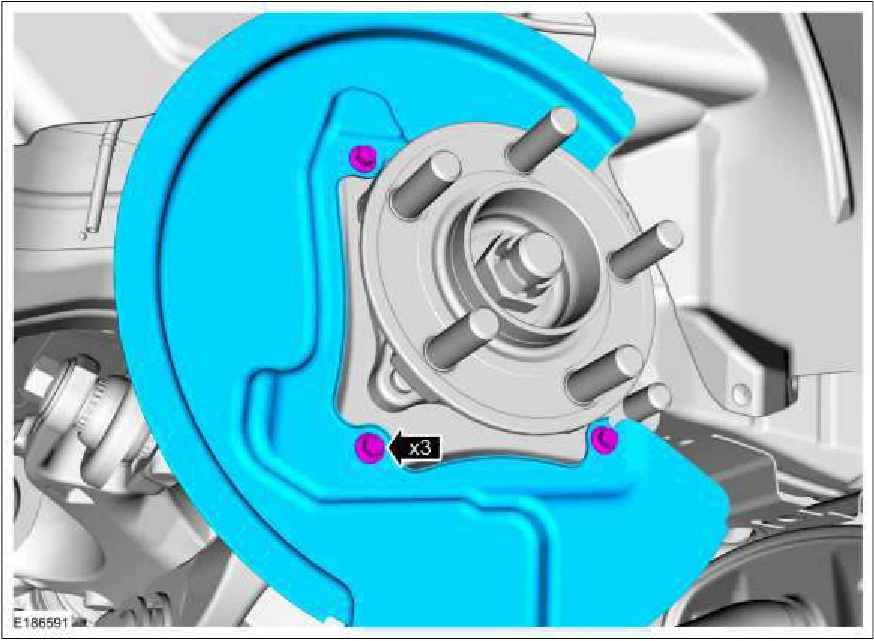

2. Remove the 3 bolts and the brake disc shield. Torque : 106 lb.in (12 Nm)

Brake Disc Shield — original illustration 1, reference 2846Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
