206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 09/28/2015

Base Part Number: 1125

Materials

Name	Specification
Metal Brake Parts Cleaner (U.S.) PM-4-A, PM-4-B (U.S.)	-

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

2. NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or

damage to the hose may occur.

Remove the 2 bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts. Torque : 129 lb.ft (175 Nm)

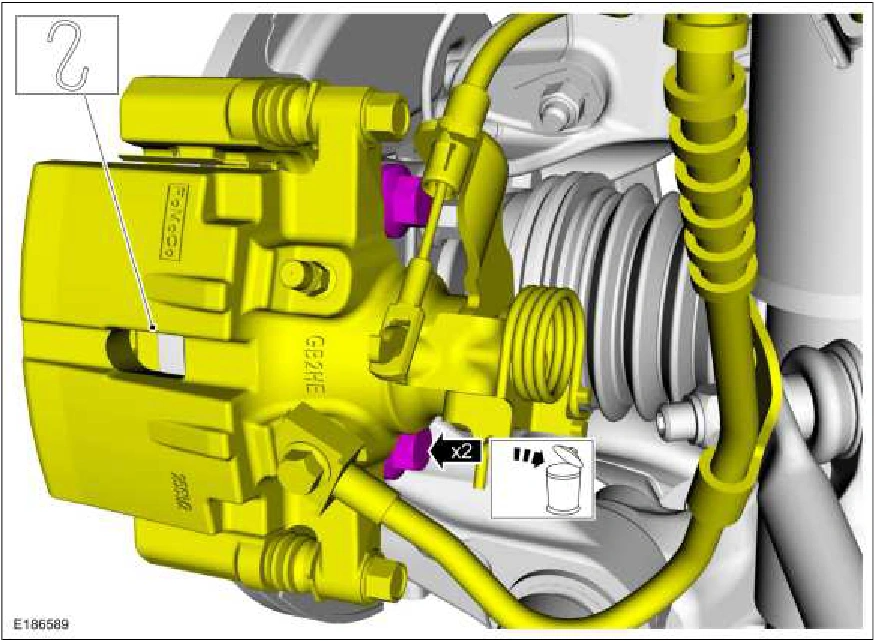

Brake Disc — original illustration 1, reference 2844Original colors & callouts · Select to enlarge

3. Remove the brake disc.

Source reference 2844
