4. NOTICE: Make sure that all openings are sealed.

Remove the brake caliper flow bolt and disconnect the brake hose from the brake caliper. Discard the washers. Torque : 35 lb.ft (47.5 Nm)

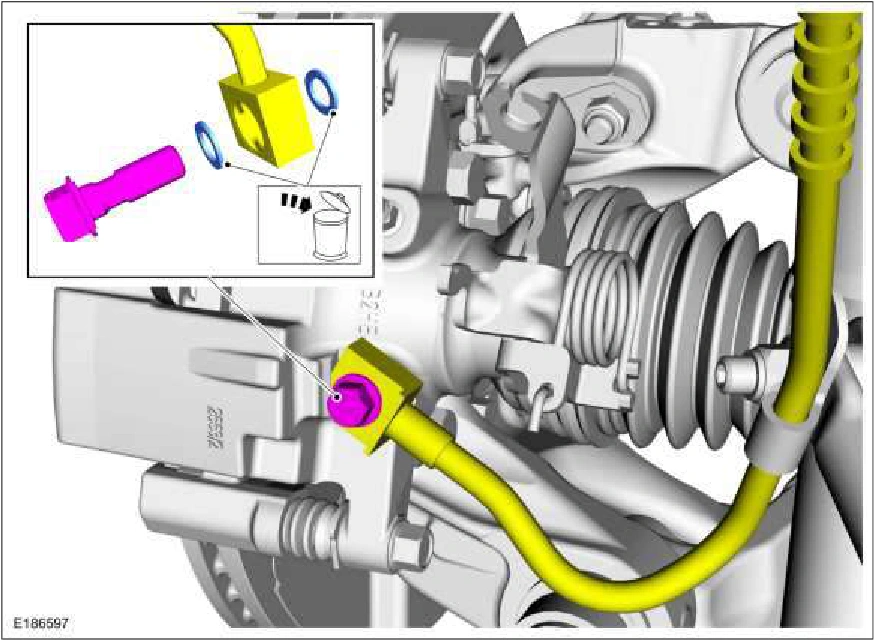

Brake Caliper — original illustration 2, reference 2841Original colors & callouts · Select to enlarge

5. Remove the 2 bolts and the brake caliper. Torque : 24 lb.ft (32 Nm)
