206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Brake Caliper Anchor Plate

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake pads. Refer to: Brake Pads (206-04 Rear Disc Brake, Removal and Installation).

2. NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or

damage to the hose may occur.

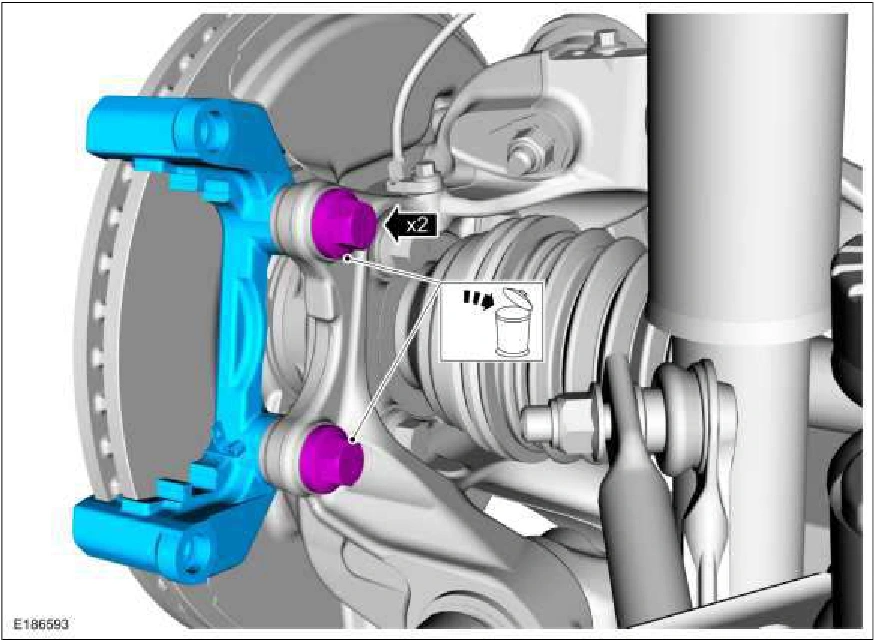

Remove the 2 bolts and the brake caliper anchor plate. Discard the bolts. Torque : 129 lb.ft (175 Nm)

Brake Caliper Anchor Plate — original illustration 1, reference 2843Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
