Brake Pads

206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 02/11/2015

Base Part Number: 2001

Special Tool(s) / General Equipment

Brake Caliper Piston Retractor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

2. NOTICE: Do not allow the brake caliper to hang from the brake hose or damage to the brake hose

may occur.

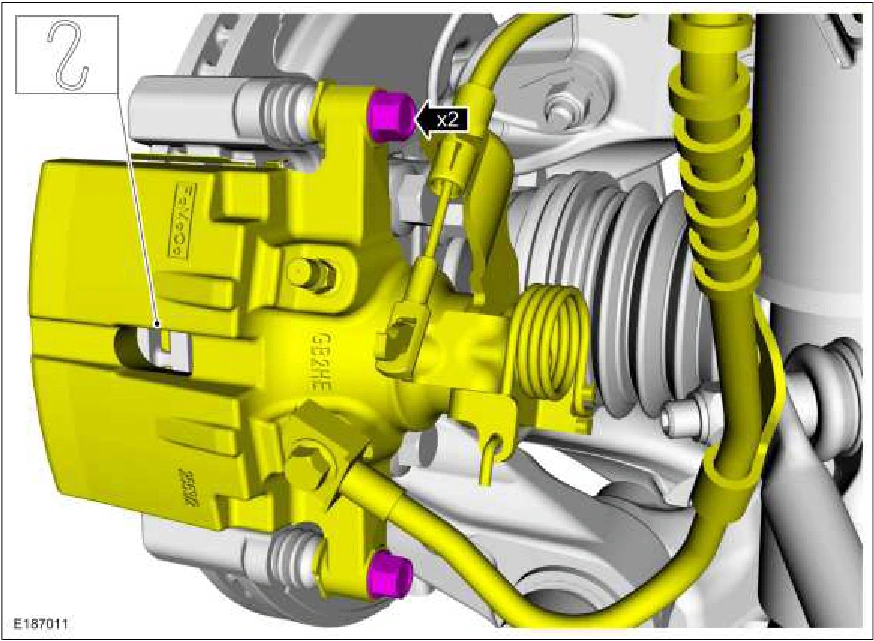

Remove the 2 bolts and position the brake caliper aside. Torque : 24 lb.ft (32 Nm)

Brake Pads — original illustration 1, reference 2847Original colors & callouts · Select to enlarge

3. Remove the brake pads.

Source reference 2847
