206-04 Rear Disc Brake 2016 Mustang

Removal and Installation Procedure revision date: 08/11/2015

Brake Disc Shield - Vehicles With: SVT Performance Package

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the parking brake shoes. Refer to: Parking Brake Shoes - Vehicles With: SVT Performance Package (206-05 Parking Brake and Actuation, Removal and Installation).

2. Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).

3. Remove the bolts and the brake disc shield. Torque : 89 lb.in (10 Nm)

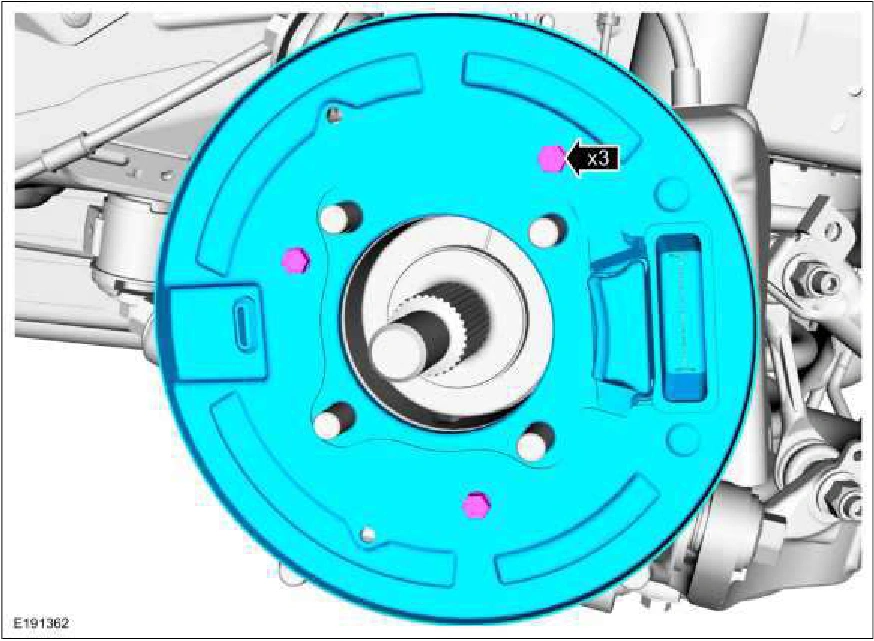

Brake Disc Shield - Vehicles With: SVT Performance Package — original illustration 1, reference 2858Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
