Parking Brake Cable Adjustment

206-05 Parking Brake and Actuation

2016 MustangReference 2,871 / 6,619HTML edition

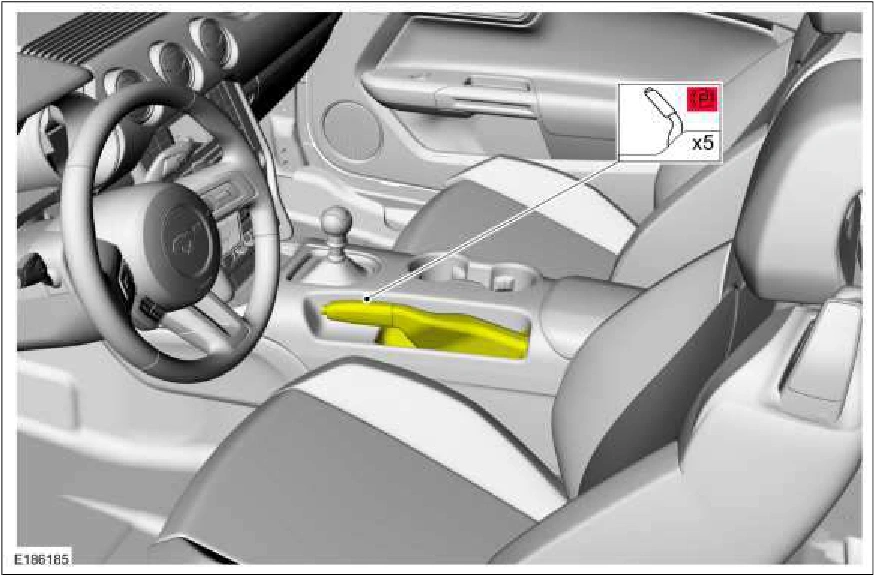

Parking Brake Cable Adjustment — original illustration 1, reference 2871Original colors & callouts · Select to enlarge

4. Tighten the parking brake cable adjustment nut until one or both caliper levers are 1.0 mm off of their stops. Use the General Equipment: Feeler Gauge

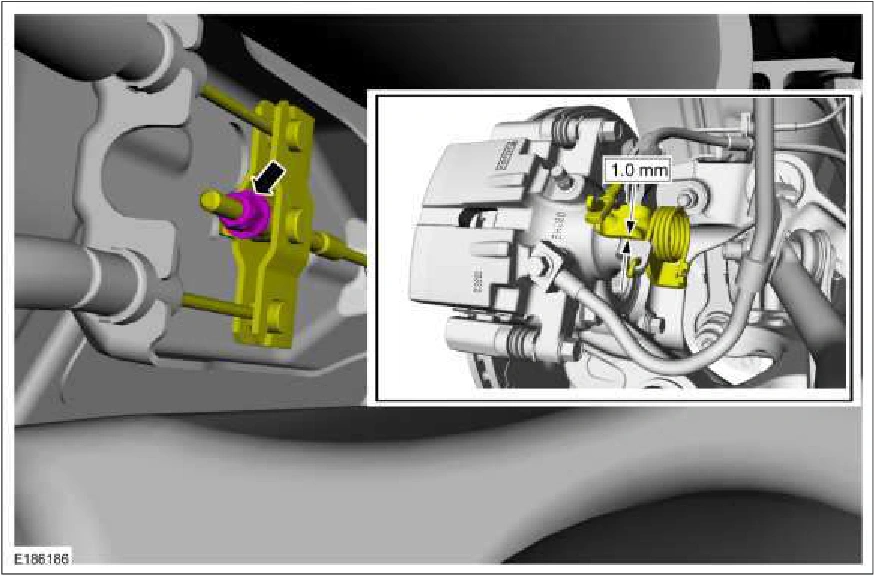

Parking Brake Cable Adjustment — original illustration 2, reference 2871Original colors & callouts · Select to enlarge
