Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package — 2016 workshop reference 2874

206-05 Parking Brake and Actuation 2016 Mustang

General Procedures Procedure revision date: 08/10/2015

Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package

Special Tool(s) / General Equipment

Caliper Gauge

Activation

1. Remove the brake disc.

Refer to: Brake Disc - Vehicles With: SVT Performance Package (206-04 Rear Disc Brake, Removal and Installation).

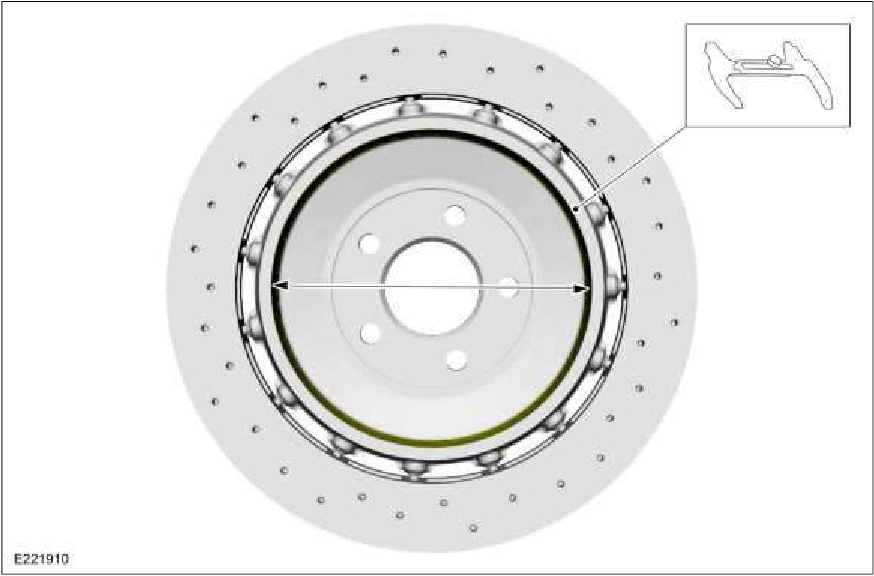

2. Measure ID of the drum portion of the brake disc. Record the measurement. Use the General Equipment: Caliper Gauge

Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package — original illustration 1, reference 2874Original colors & callouts · Select to enlarge

3. Measure the widest diameter of the parking brake shoes. Use the General Equipment: Caliper Gauge

Source reference 2874
