Parking Brake Control

206-05 Parking Brake and Actuation 2016 Mustang

Removal and Installation Procedure revision date: 08/21/2015

Base Part Number: 2780

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the muffler and tailpipe assembly. Refer to: Muffler and Tailpipe (309-00A Exhaust System - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00D Exhaust System - 5.2L 32V Ti-VCT, Removal and Installation).

Step 2

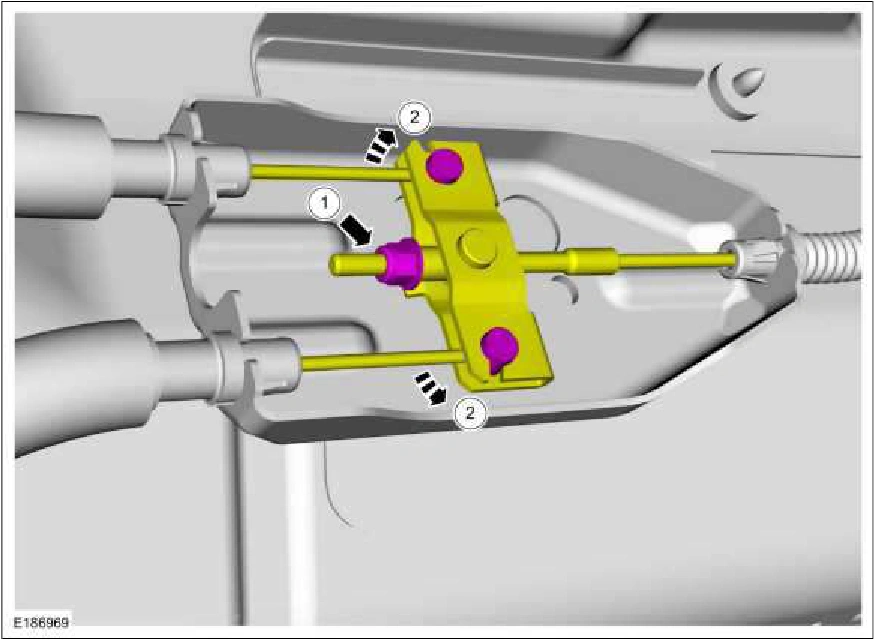

1. Loosen the parking brake cable adjustment nut.

2. Rotate the cable outward, then pull the pin and cable upwards and disconnect from the equalizer.

Parking Brake Control — original illustration 1, reference 2877Original colors & callouts · Select to enlarge

3. Release the tabs and disconnect the front cable from the bracket.

Source reference 2877
