Parking Brake Control — 2016 workshop reference 2878

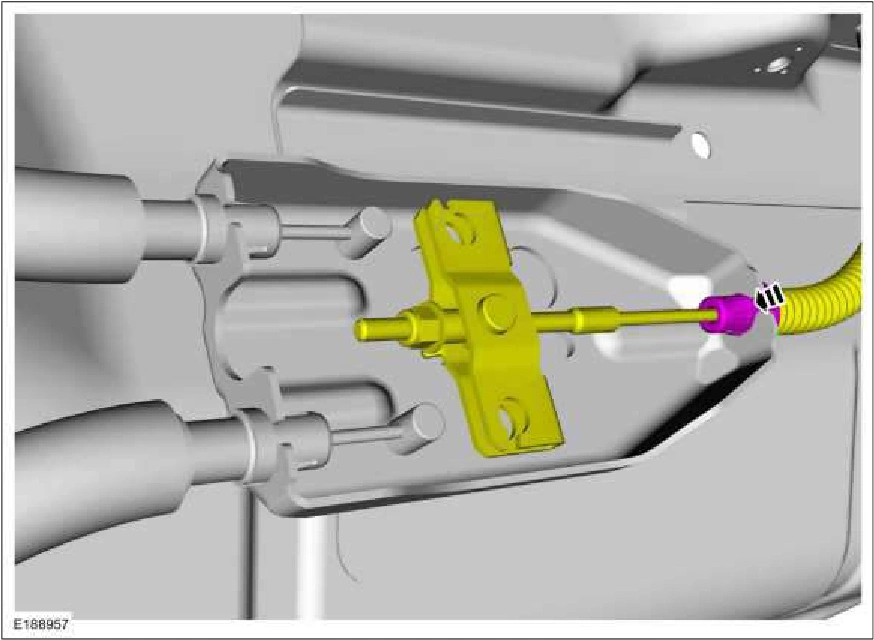

Parking Brake Control — original illustration 1, reference 2878Original colors & callouts · Select to enlarge

4. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

5. Remove the bolt and position the parking brake switch aside.

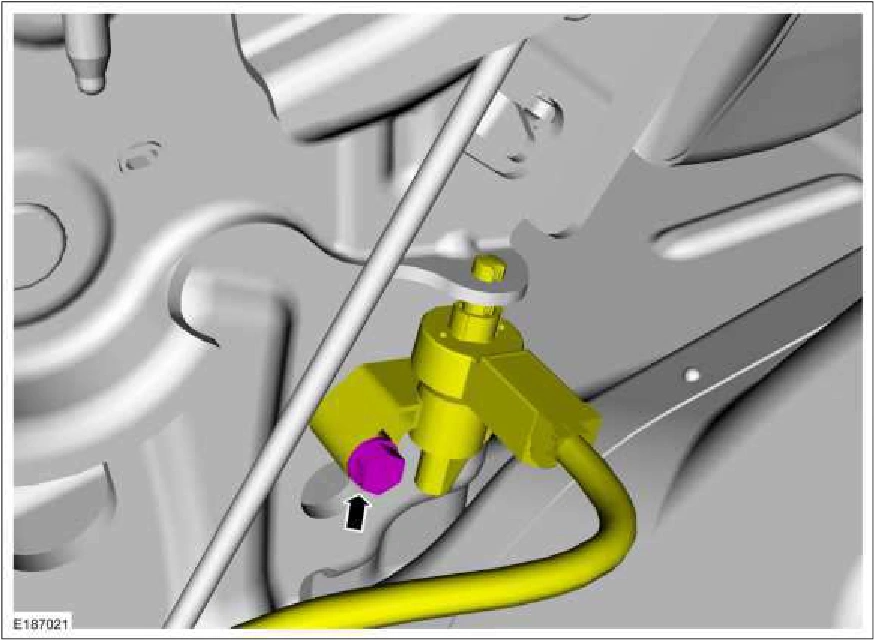

Parking Brake Control — original illustration 2, reference 2878Original colors & callouts · Select to enlarge

Step 6

1. Remove the 2 bolts. Torque : 22 lb.ft (30 Nm)

2. Remove the nut and the parking brake control and front cable assembly.
