Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package

206-05 Parking Brake and Actuation

2016 MustangReference 2,876 / 6,619HTML edition

← Chapter contents Procedure contents

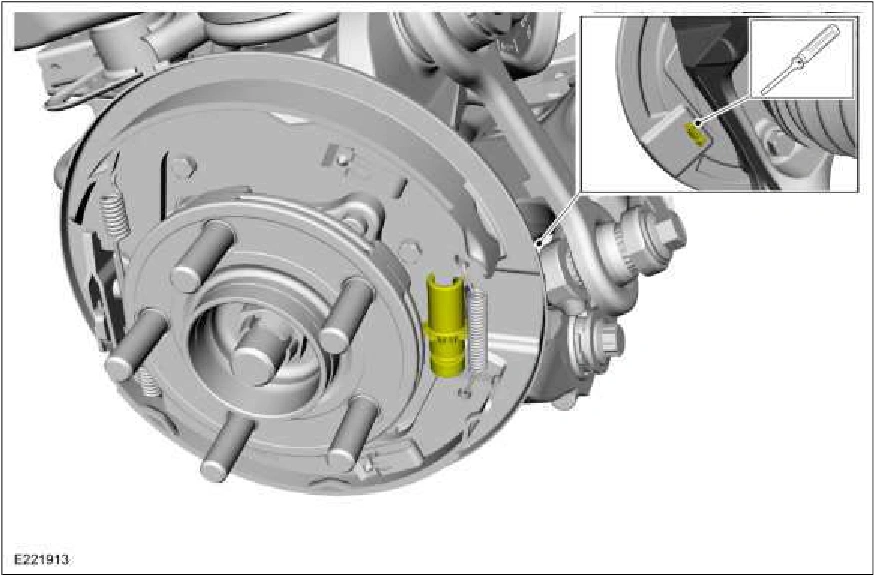

Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package — original illustration 1, reference 2876Original colors & callouts · Select to enlarge

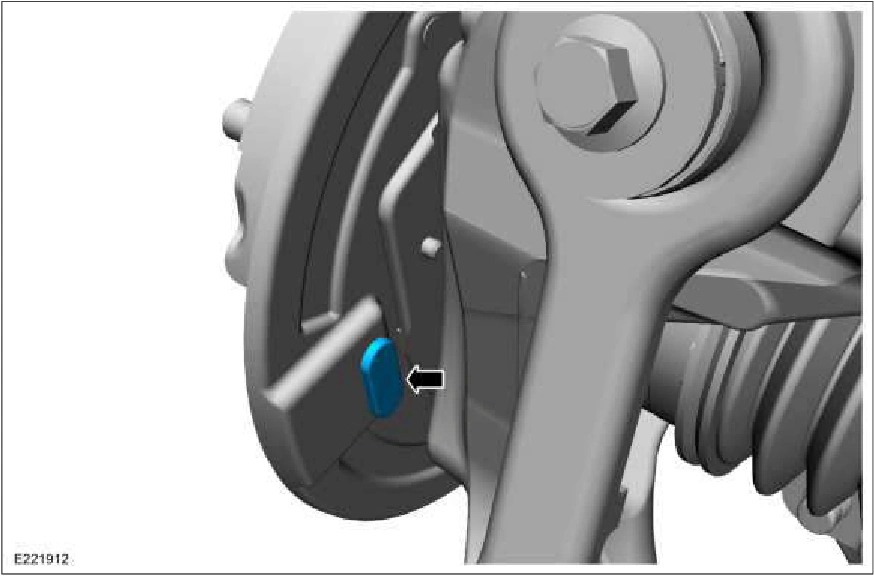

6. Install the backing plate plug.

Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package — original illustration 2, reference 2876Original colors & callouts · Select to enlarge

7. Install the brake disc.

Refer to: Brake Disc - Vehicles With: SVT Performance Package (206-04 Rear Disc Brake, Removal and Installation).
