Parking Brake Cable LH — 2016 workshop reference 2881

Parking Brake Cable LH — original illustration 1, reference 2881Original colors & callouts · Select to enlarge

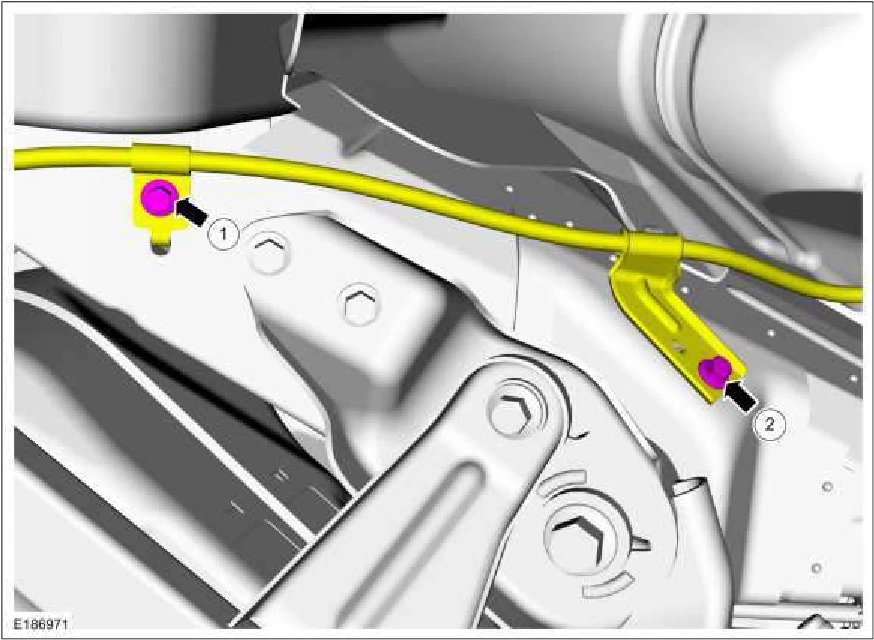

4. Remove the 2 parking brake cable bracket bolts.

1. Torque : 18 lb.ft (25 Nm)

2. Torque : 20 lb.ft (27.5 Nm)

Parking Brake Cable LH — original illustration 2, reference 2881Original colors & callouts · Select to enlarge

5. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

Source reference 2881

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
