2016 workshop · Brake System

Parking Brake Cable LH - Vehicles With: SVT Performance Package

206-05 Parking Brake and Actuation

2016 MustangReference 2,884 / 6,619HTML edition

← Chapter contents Procedure contents

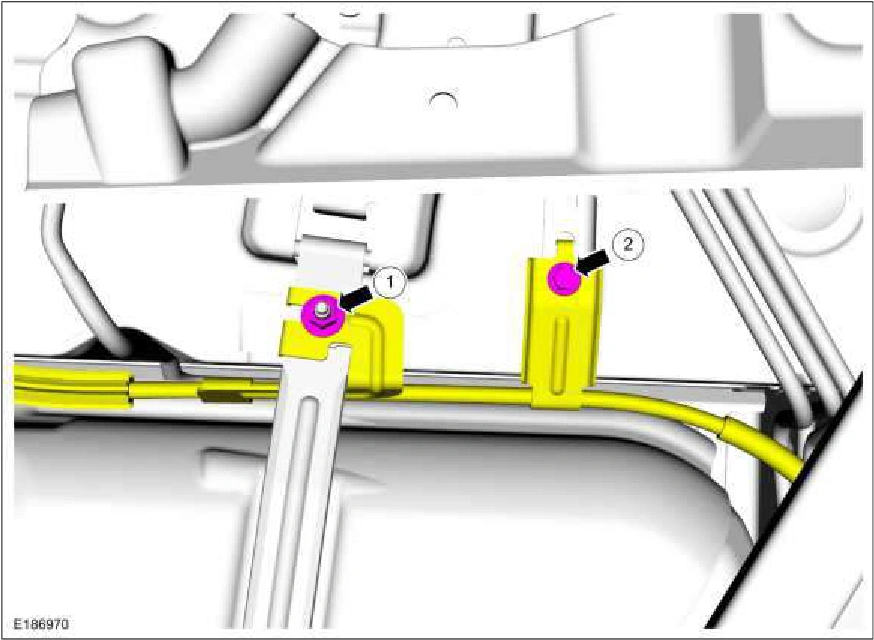

Parking Brake Cable LH - Vehicles With: SVT Performance Package — original illustration 1, reference 2884Original colors & callouts · Select to enlarge

4. Remove the parking brake cable bracket bolts. Torque :

1.: 18 lb.ft (25 Nm)

2.: 20 lb.ft (27.5 Nm)

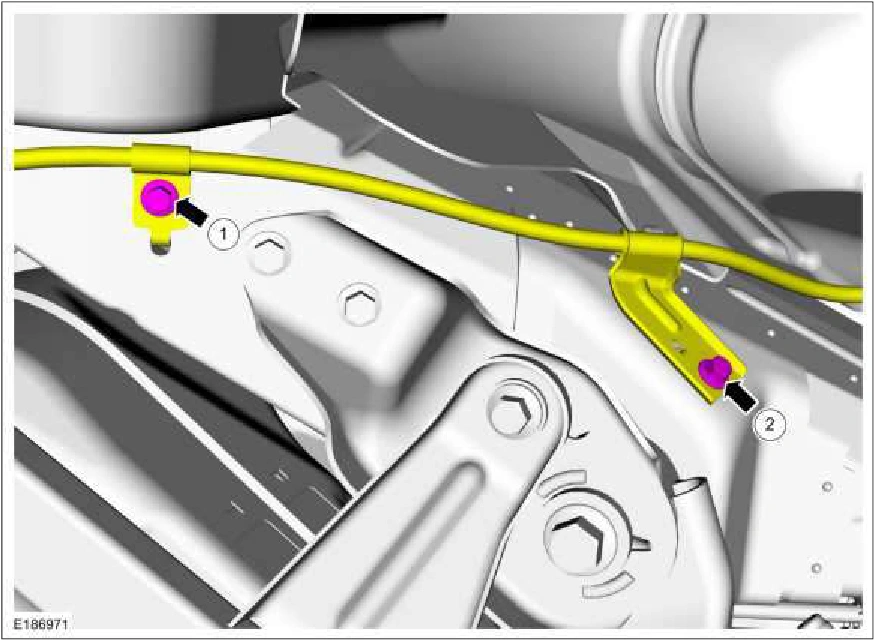

Parking Brake Cable LH - Vehicles With: SVT Performance Package — original illustration 2, reference 2884Original colors & callouts · Select to enlarge

5. Disconnect the parking brake cable from the actuation lever.

Source reference 2884
