Parking Brake Cable LH - Vehicles With: SVT Performance Package — 2016 workshop reference 2885

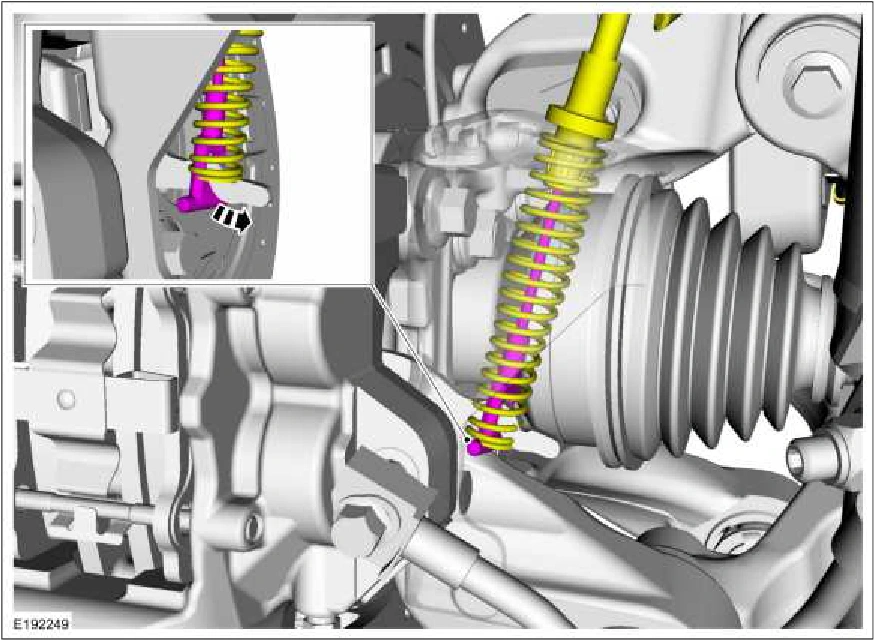

Parking Brake Cable LH - Vehicles With: SVT Performance Package — original illustration 1, reference 2885Original colors & callouts · Select to enlarge

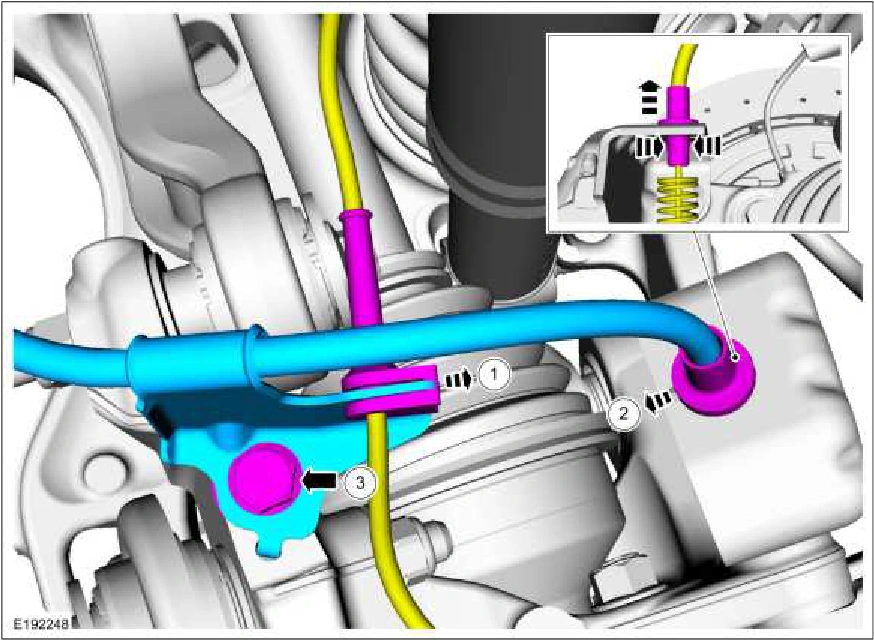

Step 6

1. Detach the wheel speed sensor harness retainer and position the harness aside.

2. Push inward on the tabs and detach the cable from the bracket.

3. Remove the parking brake cable bracket bolt and remove the LH parking brake cable. Torque : 20 lb.ft (27.5 Nm)

Parking Brake Cable LH - Vehicles With: SVT Performance Package — original illustration 2, reference 2885Original colors & callouts · Select to enlarge

Installation

Source reference 2885
