Parking Brake Cable LH — 2016 workshop reference 2882

Step 6

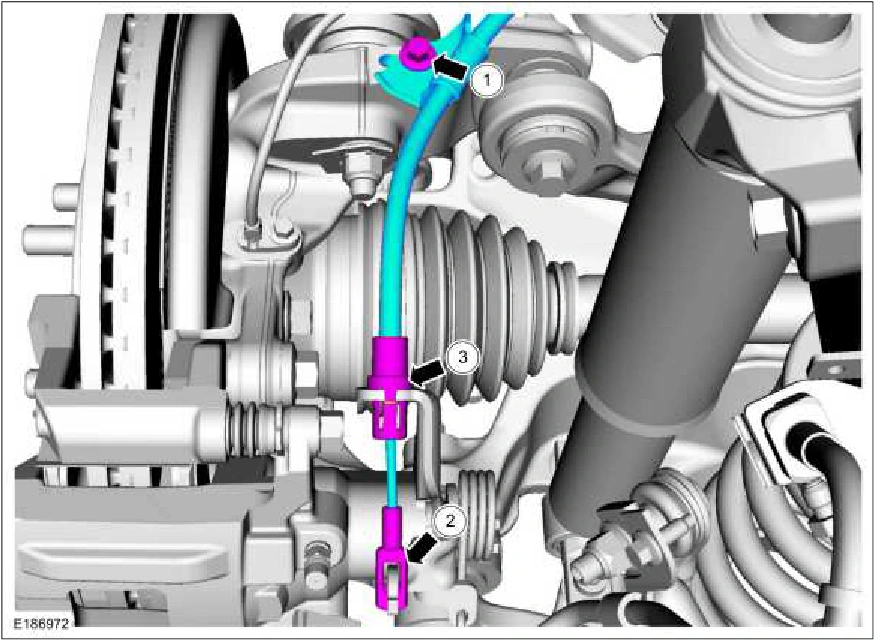

1. Remove the parking brake cable bracket bolt. Torque : 20 lb.ft (27.5 Nm)

2. Disconnect the parking brake cable from the brake caliper lever.

3. Push inwards on the 2 tabs, detach the parking brake cable from the brake caliper bracket and remove the parking brake cable.

Parking Brake Cable LH — original illustration 1, reference 2882Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Adjust the parking brake Cables. Refer to: Parking Brake Cable Adjustment (206-05 Parking Brake and Actuation, General Procedures).
