308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3161Original colors & callouts · Select to enlarge

7. Remove the gearshift lever nuts.

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 2, reference 3161Original colors & callouts · Select to enlarge

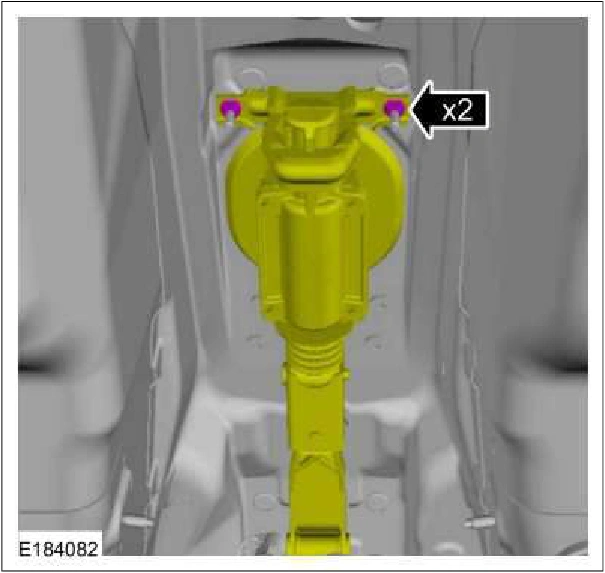

8. Remove the gearshift lever assembly.

1. Remove the gearshift lever-to-transmission bolt.

2. Remove the gearshift lever bolt.

3. Remove the gearshift lever assembly from the transmission by pulling towards the rear of the vehicle.
