308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82

2016 MustangMT82Reference 3,162 / 6,619HTML edition

← Chapter contents

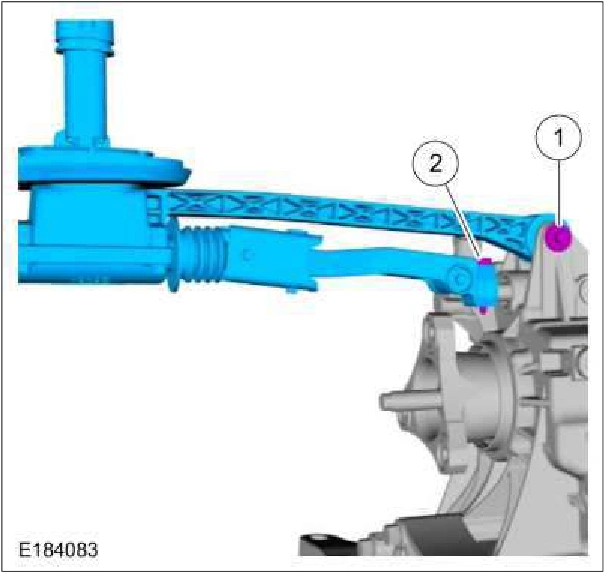

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3162Original colors & callouts · Select to enlarge

9. Inspect the following components for damage. If damage is found, replace the components as necessary.

1. Rubber Boot

2. Service kit (roll pin, spring, plastic blocker, shoulder bolt and anti-rattle washer)

3. Rear isolator

4. Tunnel seal and foam gasket

5. Front hub bushing

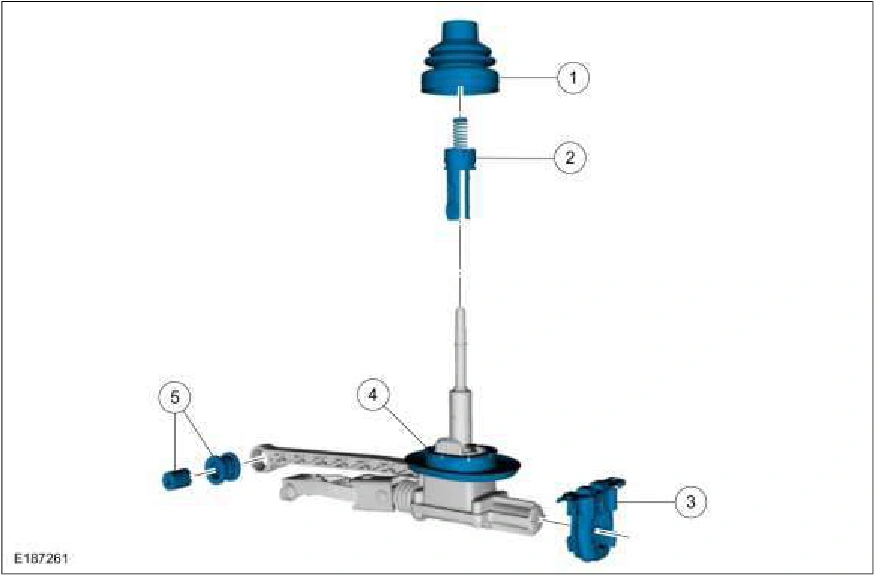

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 2, reference 3162Original colors & callouts · Select to enlarge

Installation

1. Install the gearshift lever assembly.

1. Install the gearshift lever bolt. Torque : 133 lb.in (15 Nm)

Source reference 3162
