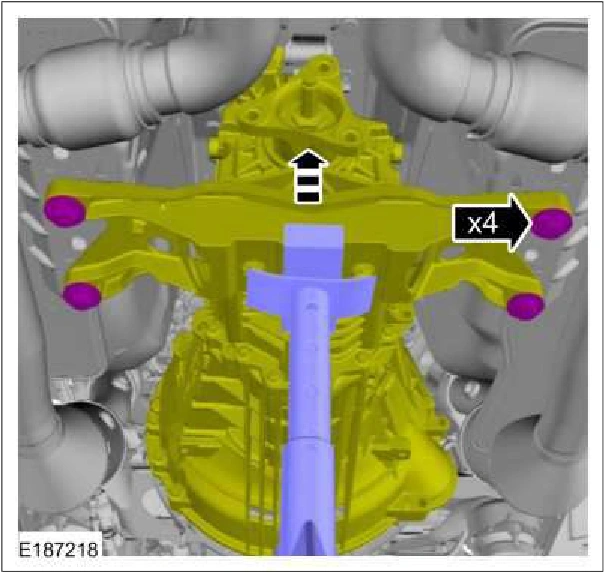

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3164Original colors & callouts · Select to enlarge

4. Install the driveshaft. Refer to: Driveshaft (205-01 Driveshaft, Removal and Installation).

5. Install the gearshift lever boot and attach the retainers.

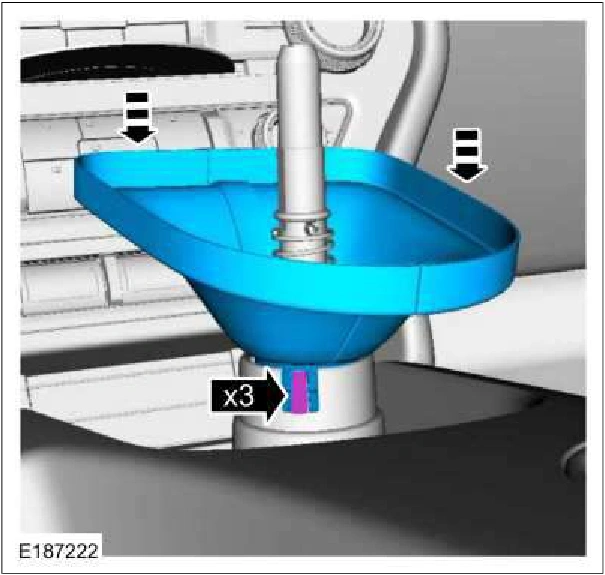

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 2, reference 3164Original colors & callouts · Select to enlarge

6. Install the gearshift lever boot to the floor console.
