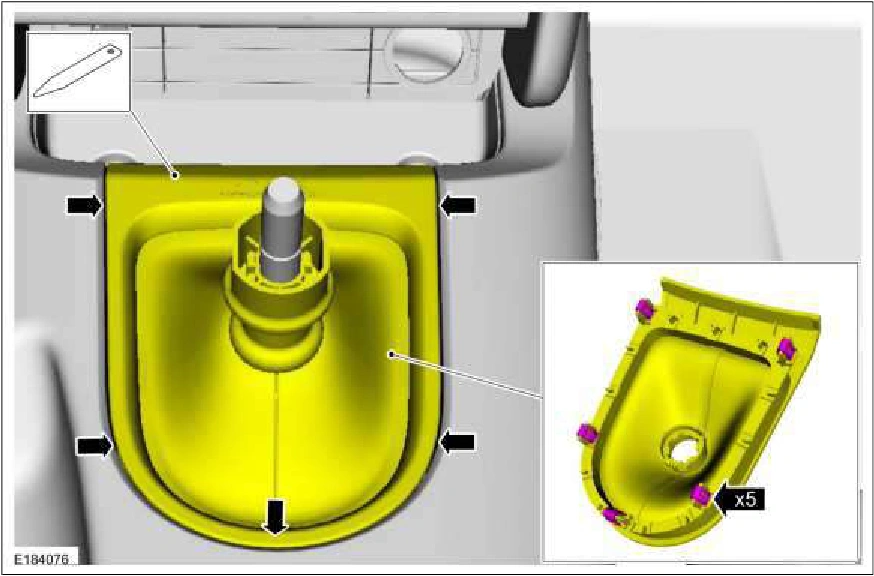

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3167Original colors & callouts · Select to enlarge

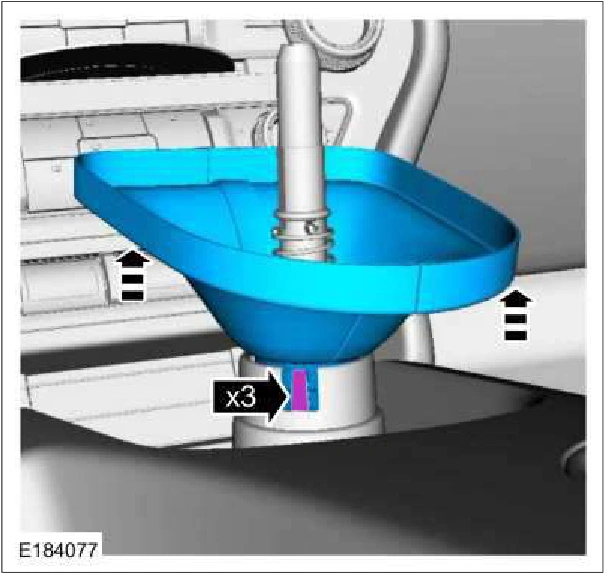

3. Release the retainers and remove the gearshift lever boot.

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 2, reference 3167Original colors & callouts · Select to enlarge

Installation

1. Install the gearshift lever boot and attach the retainers.
