308-06A Manual Transmission External Controls - 6-Speed Manual 2016 Mustang Transmission - MT82

Procedure revision date:

Removal and Installation

02/12/2015

Gearshift Lever Boot

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

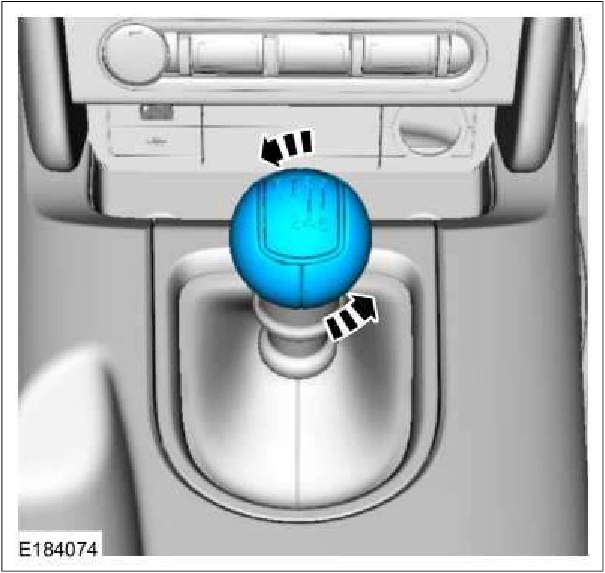

1. Rotate the gearshift knob counterclockwise and remove the gearshift knob.

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3166Original colors & callouts · Select to enlarge

2. Using an interior trim remover, release the gearshift lever boot from the floor console starting at the front sides and moving rearward. Use the General Equipment: Interior Trim Remover
