damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

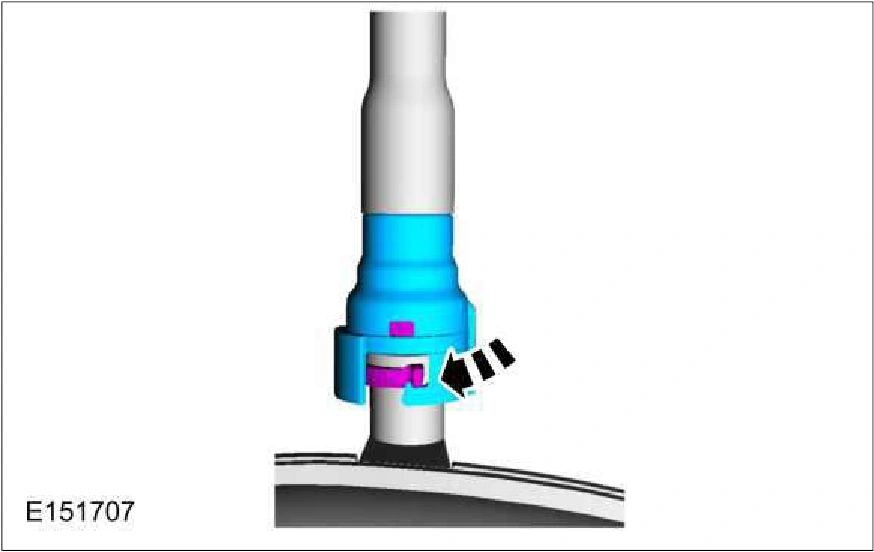

NOTE: Type 3
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
3.
Connect
1.
