310-00C Fuel System - General Information - 5.0L — 2016 workshop reference 3252

cause fuel leaks.

NOTE: Type 4

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

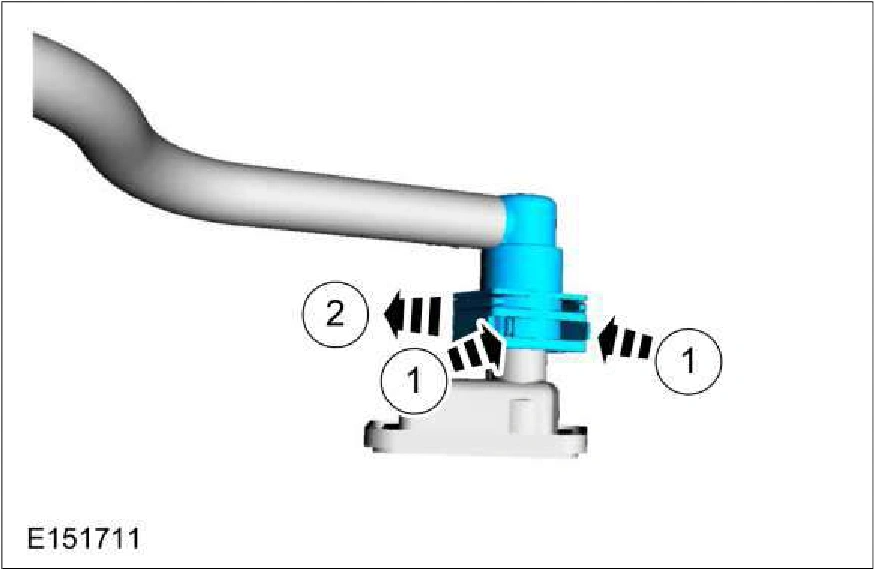

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3252Original colors & callouts · Select to enlarge

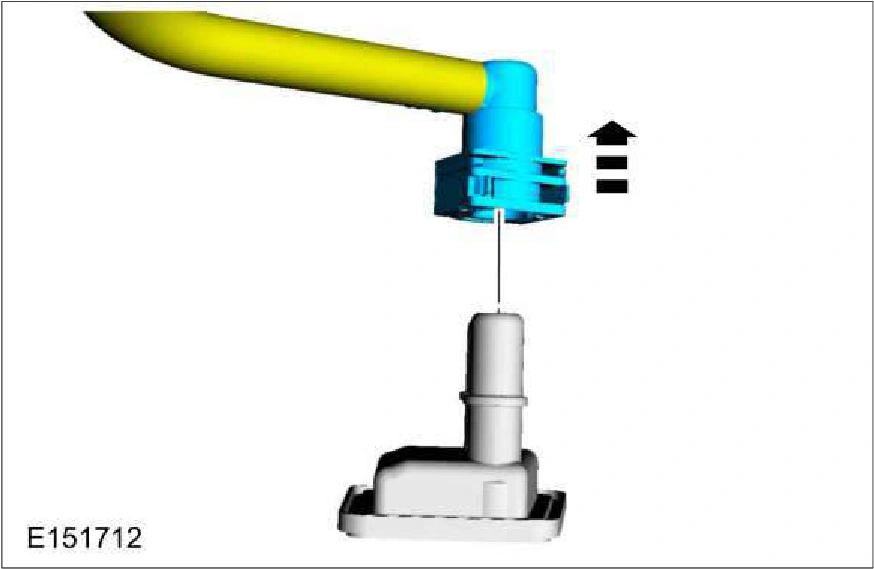

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3252Original colors & callouts · Select to enlarge
