Disconnect

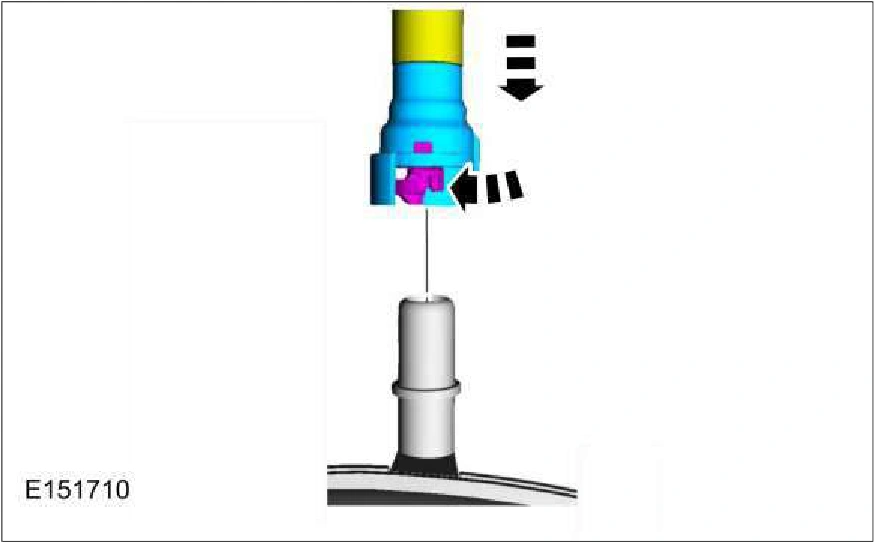

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3251Original colors & callouts · Select to enlarge

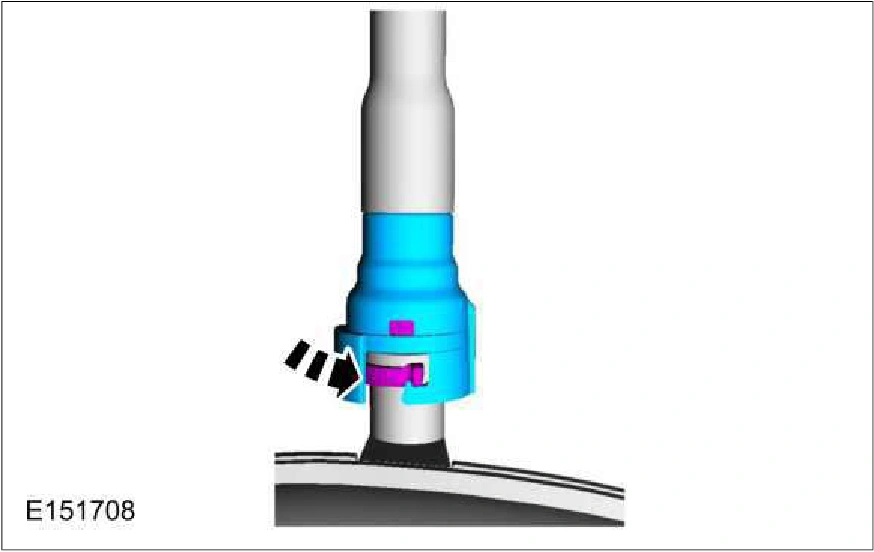

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3251Original colors & callouts · Select to enlarge

3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

NOTICE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may

Source reference 3251
