Connect

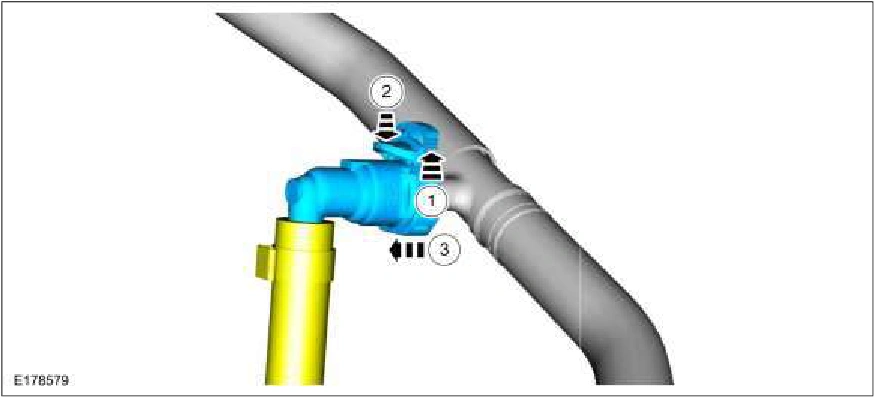

310-00C Fuel System - General Information - 5.0L — original illustration 1, reference 3256Original colors & callouts · Select to enlarge

Step 1

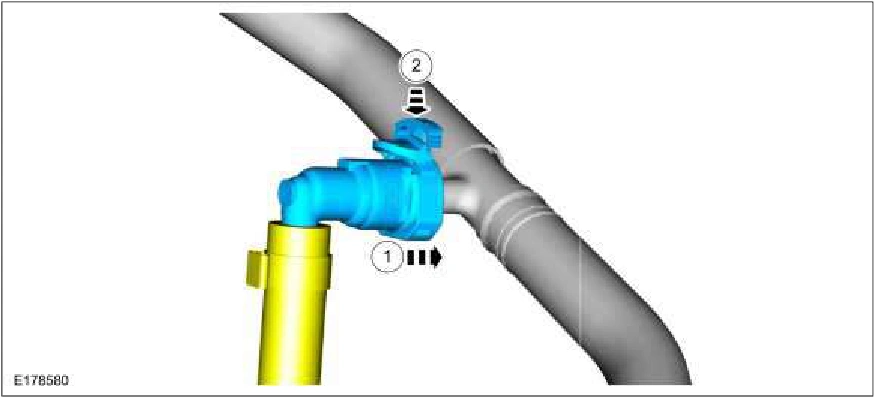

1. Push the quick release coupling onto the tube.

2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

Lock the secondary locking tab.

310-00C Fuel System - General Information - 5.0L — original illustration 2, reference 3256Original colors & callouts · Select to enlarge

2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Source reference 3256

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
